点击放大查看

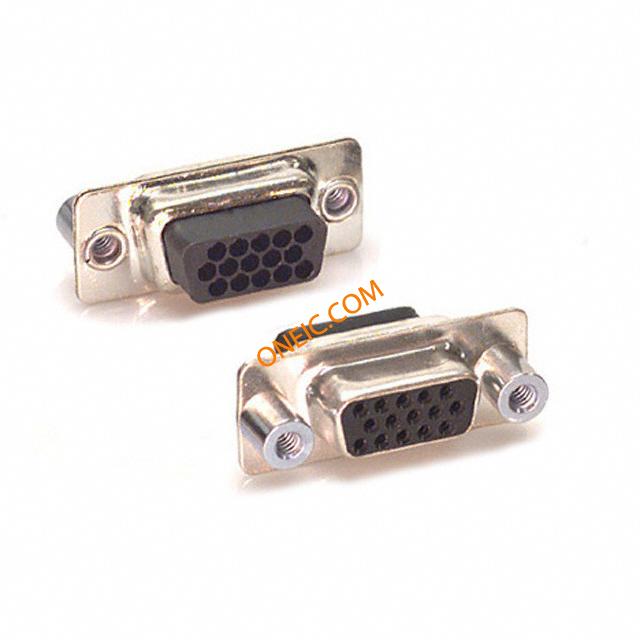

180-015-272L030
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Female CONN DB15 FEMALE HD CRIMP TIN |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 80 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 包装方式 | Tray | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle for Female Contacts |
| 法兰特征 | Mating Side (4-40) | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 备注 | Contacts Not Provided | 产品特性 | Shielded |
环境参数
| 工作温度 | -50°C ~ 100°C | ||
