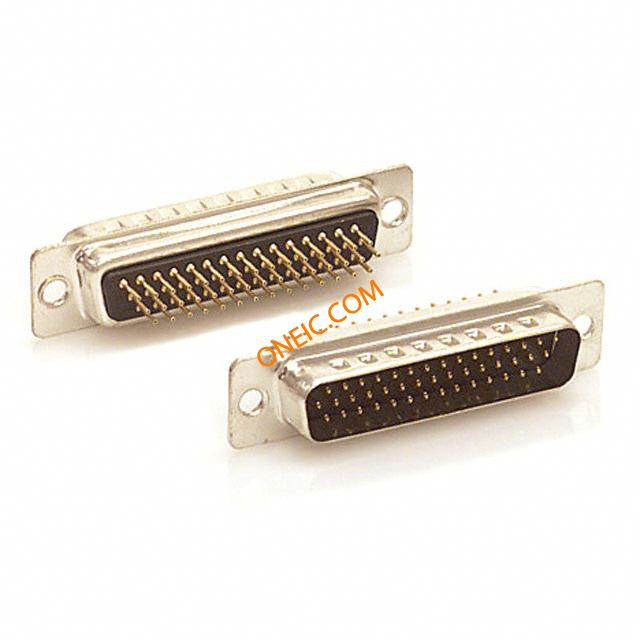

180-044-113R001
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P MALE VERT DIP SOLDER CONN DB44 MALE HD DIP SLD NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 44WAY |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - 180 Series | 最大额定电流 | 2 A |
机械参数
| 重量 | 0.0093 | 包装方式 | Tray |
| 外壳尺寸 | :DB | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Through Hole | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 本体材料 | :Steel |
| 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled | 端接样式 | Solder |
| 触点数 | 44 | 接触件端接 | :Solder |
| 位数 | 44 | 外壳材料及表面处理 | Steel, Nickel Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) High Density |
产品信息
| 连接器性别 | Male | 系列 | :180 |
| 产品特性 | Grounding Indents, Shielded | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
