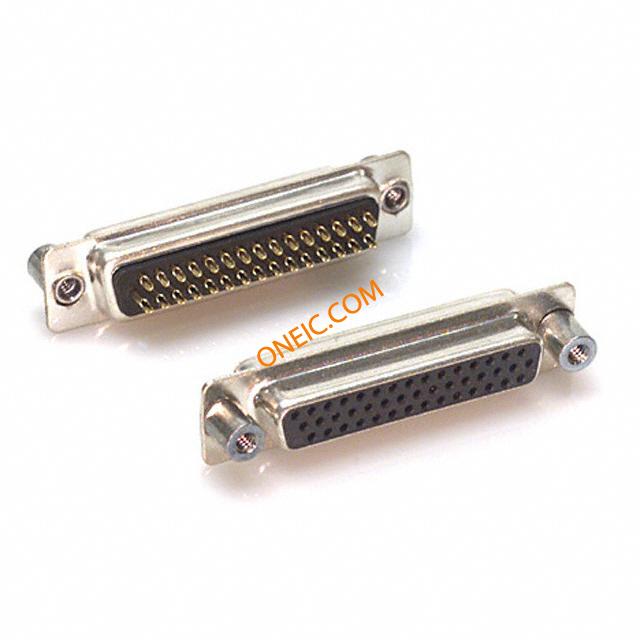

180-044-202L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P Female CONN DB44 FEMALE HD SLD CUP TIN |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 50 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 5A | ||
机械参数
| 包装方式 | Tray | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line); Panel Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Mating Side (4-40) | 排数 | 3 |
| 连接器样式 | D-Sub, High Density | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 位数 | 44 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 3 (DB, B) High Density |
产品信息
| 产品特性 | Shielded | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
