点击放大查看

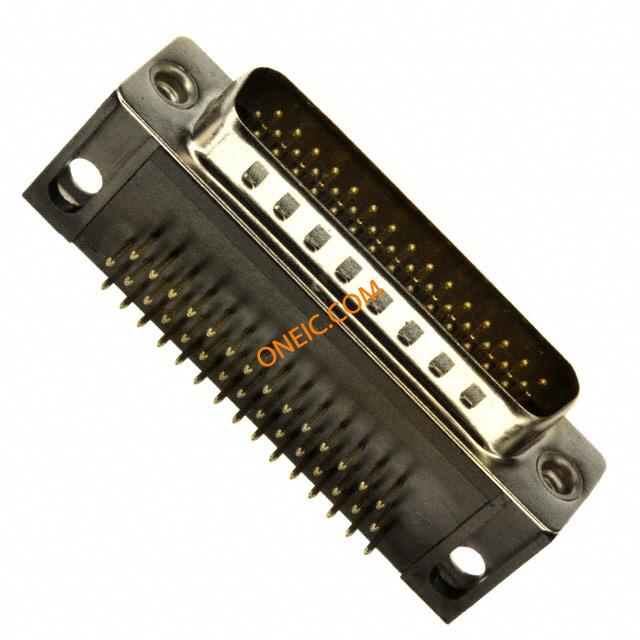

181-044-113R171
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P Male Right Angle CONN DB44 MALE HI DENSITY R/A |
| Category |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 2 A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Through Hole, Right Angle | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Through Hole |
| 排数 | 3 | 连接器样式 | D-Sub, High Density |
| 壳体材料 | Polyamide (PA9T), Nylon 9T | 端接样式 | Solder |
| 触点数 | 44 | 位数 | 44 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 3 (DB, B) High Density | ||
产品信息
| 连接器性别 | Male | 系列 | 181 |
| 产品特性 | Ground Strap, Grounding Indents, Shielded | ||
环境参数
| 工作温度 | -50°C ~ 100°C | ||
