.jpg)
点击放大查看

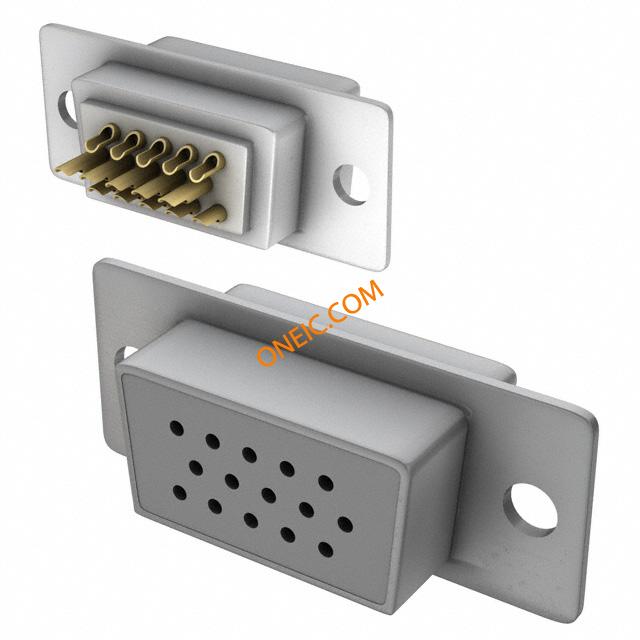

780-M15-203L001
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD FEMALE IP67 SOLDER CUP CONN DB-15POS HD FEMALE SLD IP67 HD DSUB, SOCKET, IP67, SOLDER, 15WAY |
| Category |
商业参数
| 商标名 | SEAL-D | 标准包装数量 | 110 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - Seal D Series | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 重量 | 0.0057 |
| 包装方式 | Tray | 外壳尺寸 | :DE |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Vertical | 外壳镀层 | Nickel |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 3 | 连接器样式 | D-Sub, High Density |
| 本体材料 | :Steel | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 触点数 | 15 |
| 接触件端接 | :Solder | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) High Density | ||
产品信息
| 连接器性别 | Female | 系列 | :780 |
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55°C ~ 105°C | ||
