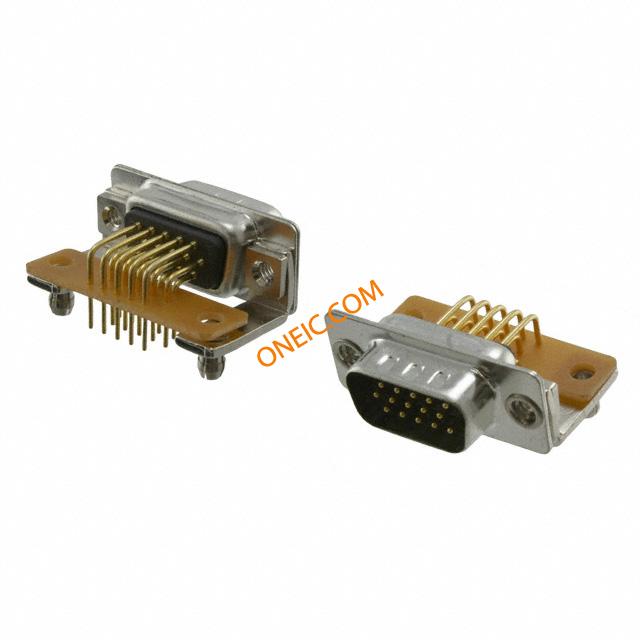

781-M15-113R141
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P HD MALE IP67 R/A 0.350 FP CONN 15POS HD MALE R/A .350 IP67 HD DSUB, PLUG, IP67, THT, 15WAY |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | SEAL-D | 标准包装数量 | 36 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 量程（°/s） | :NORCOMP - Seal D Series | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 重量 | 0.0102 |
| 包装方式 | Tray | 外壳尺寸 | :DE |
| 端接方式 | Solder | 触头类型 | Signal |
| 安装类型 | Right | 外壳镀层 | Nickel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 安装样式 | Panel |
| 排数 | 3 | 连接器样式 | D-Sub, High Density |
| 本体材料 | :Steel | 壳体材料 | Polyamide (PA6T), Nylon 6T |
| 端接样式 | Solder | 触点数 | 15 |
| 接触件端接 | :Solder | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Nickel Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 1 (DE, E) High Density | ||
产品信息
| 连接器性别 | Male | 系列 | :781 |
| 产品特性 | Board Lock, Grounding Indents | ||
环境参数
| 机械寿命 | New Technology: Cutting edge technology for the newest designs. | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55°C ~ 105°C | ||
