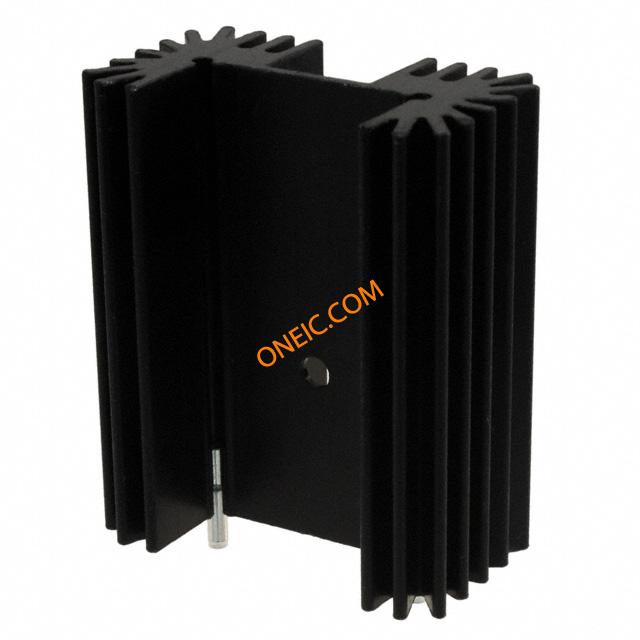

RA-T2X-51E
| Manufacturer | |
| Description | Heat Sinks HTSNK TO-220 218 247 BLK ANODIZED HEATSINK FOR TO-220 218 247 2.0" Heat Sink Passive TO-220/TO-218/TO-247 Screw Mount 3.5°C/W Black Anodized HEATSINK, TO-220/218/247, BLACK HEATSINK FOR TO-220 218 247 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Heat Sinks | 交货时间 | 112 Days |
| 其他名称 | RAT2X51E | 子类别 | Heat Sink |
| 产品类别 | Heat Sinks | 标准包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 76041090 | ||
机械参数
| 形状 | Rectangular | 宽度 | 25 mm |
| 表面处理 | Black Anodized | 高度 | 50.8 mm |
| 长度 | 42 mm | 重量 | 0.051 |
| 材料（通用） | Aluminum | 包装方式 | Bulk |
| 散热片高度 | Omnidirectional | 表面类型 | 17.065 mm2 |
| 安装样式 | Through Hole | 冷却的封装 | TO-218, TO-220, TO-247 |
| 宽度（英寸） | :1.65" | 高度（英寸） | :2" |
| 材料表面处理 | Black Anodized | 总宽度 | :42mm |
| 总长度 | :0.98" | 主要材料 | TO-218/TO-220/TO-247 |
| 尺寸/外形 | 50.8 mm L x 42 mm W x 25 mm H, 2 in. L x 1.65 in. W x 0.98 in. H | 固定方法 | Bolt On and PC Pin |
| 散热器材料 | Aluminum | 安装高度（最大） | 0.984" (25.00mm) |
| 外壳尺寸 - 插入（转换自） | :50.8mm | ||
产品信息
| 类型 | Board Level, Vertical | 产品特性 | For Vertical Mounting with Solderable Pins |
| 应用领域 | TO-220, TO-218, TO-247 | 应用细节 | BH25, TCH35, TEH70, TEH100 Resistors |
环境参数
| 热保护 | :Aluminium | 热阻 | 3.5 C/W |
| 自然散热热阻 | 3.5°C/W | 温升功耗 | 8W @ 40°C |
| 强制风冷热阻 | 1°C/W @ 300 LFM | ||
