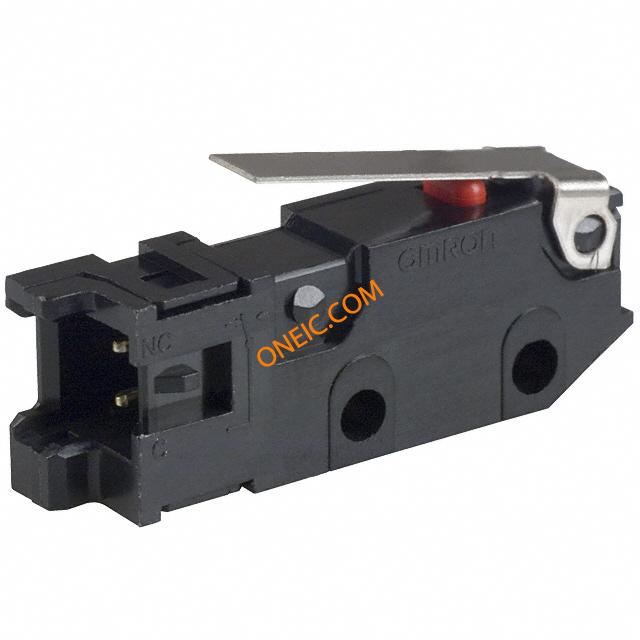

点击放大查看
对参数有疑问？问 AI 助手
Business
| Lead Time | 42 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 366138 | Product Category | Basic / Snap Action Switches |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NC | Operation | SnapAction |
| Voltage Rating | 30V | Number of Poles | 1 |
| Switch Function | On-Mom | Dielectric Strength | 1500VAC |
| Differential Travel | 0.030" (0.8mm) | Current Rating (Max) | 100mA (DC) |
Mechanical
| Packaging | Bulk | Overtravel | 0.047" (1.2mm) |
| Body Finish | Subminiature | Termination | QCTabs |
| Contact Form | SPST | Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount | Release Force | 6gf |
| Operating Force | 51gf | Termination Style | Connector |
| Mounting Hole Diameter | 2.4mm | ||
Product Info
| Type | Miniature | Series | D3M |
| Card Standard | Snap-Action Switch | Electrical Life | 200,000 Cycles |
| Industry Aliases | D3M-01K1 | Operating Position | 0.394" (10.0mm) |
Environmental
| Mechanical Life | 500,000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- How to Read Date Codes
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
