点击放大查看

XAP-02V-1

Manufacturer	JST Mfg. Co., Ltd.
Description	CONN HOUSING XA 2POS 2.5MM PCB plug housing,XA,2.5mm pitch,2way Conn Housing RCP 2 POS 2.5mm Crimp ST Cable Mount Bag Crimp housing Pitch2.5 mm Poles 2 Contact DesignFemale Single row / Free hanging/cable mount XA, XAP-02V-1, JST
Category	光电子学分立LED指示灯硬件/配件

对参数有疑问？问 AI 助手

商业参数

标准包装数量

1,000

合规参数

RoHS

Compliant

材料阻燃等级

UL 94 V-0

电气参数

额定电压	250	极数	2
接触电阻	10 mOhm	最大额定电流	3 A
绝缘电阻	1000 MOhm	最小供电电压	250VDC/250VAC

机械参数

颜色	Natural	深度	9.5mm
间距	0.098" (2.50mm)	宽度	6.9mm
高度	6.9 mm	长度	7.3mm
包装方式	Bulk	导线线规	20-28
触头类型	Female Socket	外壳颜色	White
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Latch Lock	排数	1
连接器样式	Single row	壳体材料	Nylon
总长度	7.3 mm	连接器颜色	white
触点数	2	接触件端接	Crimp
位数	2	第一连接器极性	Female
线规或范围 - AWG	28...20 AWG

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Female	系列	XA
已删除	Compliant	连接方式	Wire-Board
适用产品/相关产品	Removable crimp connector

环境参数

工作温度

-25C to 85C

Documents & Media

PDF Document

XA Connector

相关型号

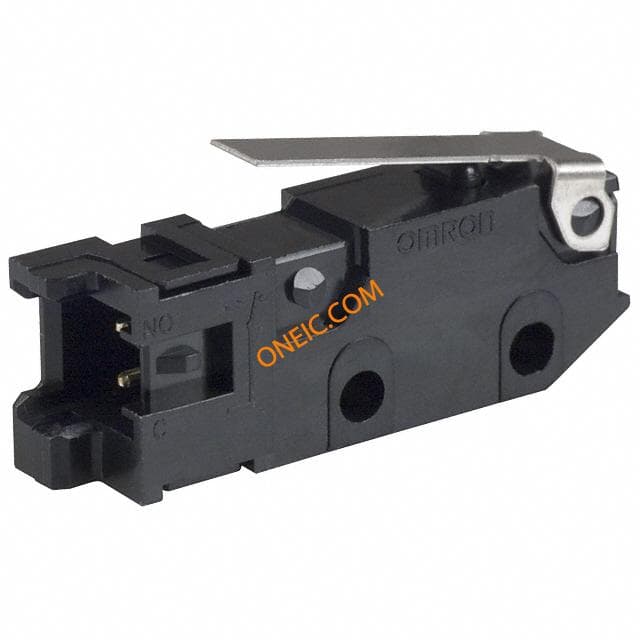

D3M-01K1-3
