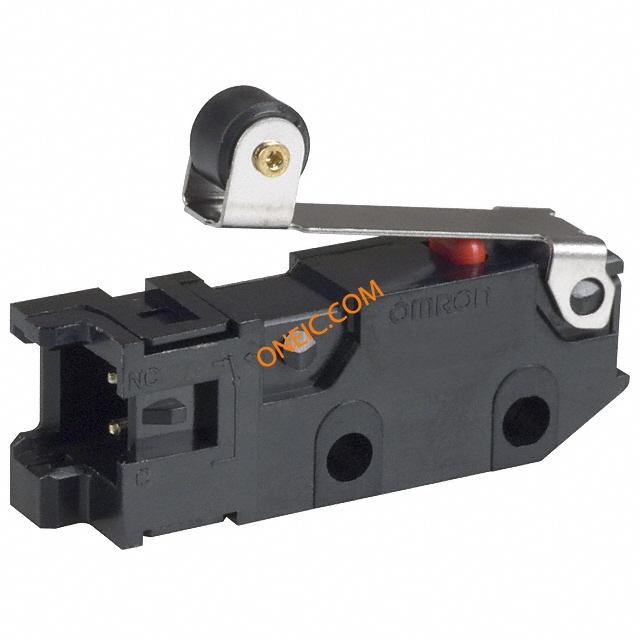

点击放大查看
对参数有疑问？问 AI 助手
Business
| Lead Time | 96 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 366140 | Product Category | Basic / Snap Action Switches |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NC | Voltage Rating | 30V |
| Switch Function | On-Mom | Differential Travel | 0.030" (0.8mm) |
| Current Rating (Max) | 100mA (DC) | ||
Mechanical
| Packaging | Bulk | Overtravel | 0.047" (1.2mm) |
| Contact Form | SPST | Actuator Type | Lever, Roller |
| Mounting Type | Chassis Mount | Release Force | 6gf |
| Operating Force | 51gf | Termination Style | Connector |
Product Info
| Type | Miniature | Series | D3M |
| Card Standard | Snap-Action Switch | Electrical Life | 200,000 Cycles |
| Industry Aliases | D3M-01K2 | Operating Position | 0.618" (15.7mm) |
Environmental
| Mechanical Life | 500,000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25°C ~ 85°C | ||
