Business
| Lead Time | 42 Days | Subcategory | Switch Snap Action |
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Circuit | SPST-NC | Operation | SnapAction |
| Voltage Rating | 30V | Number of Poles | 1 |
| Switch Function | On-Mom | Dielectric Strength | 1500VAC |
| Differential Travel | 0.025" (0.6mm) | Current Rating (Max) | 100mA (DC) |
Mechanical
| Packaging | Bulk | Overtravel | 0.026" (0.7mm) |
| Body Finish | Subminiature | Termination | QCTabs |

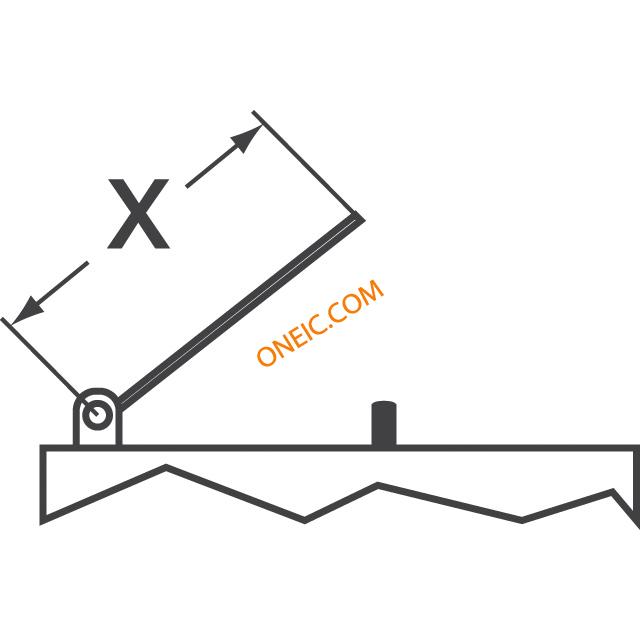

| Contact Form | SPSTNC | Actuator Type | Lever, Straight |
| Mounting Type | Chassis Mount | Release Force | 10gf |
| Operating Force | 102gf | Termination Style | Connector |
| Mounting Hole Diameter | 2.4mm | ||
Product Info
| Type | Basic | Card Standard | Snap-Action Switch |

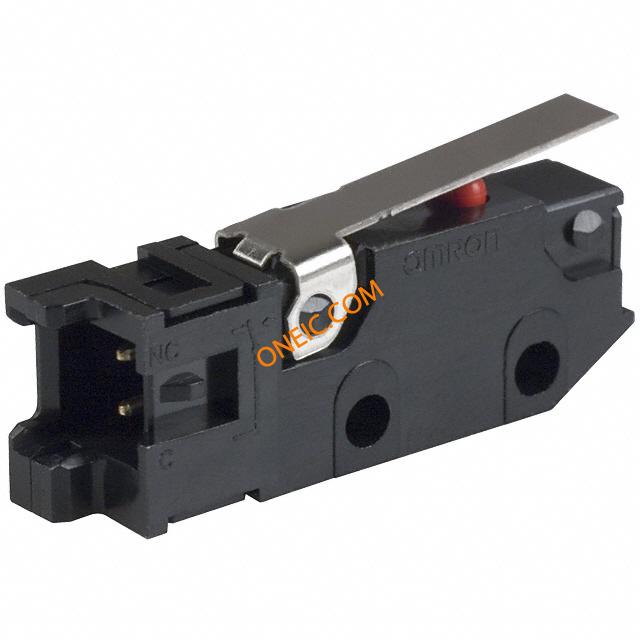

| Electrical Life | 200,000 Cycles | Industry Aliases | D3M-01L1 |
| Operating Position | 0.362" (9.2mm) | ||
Environmental
| Mechanical Life | 500,000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- How to Read Date Codes
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
