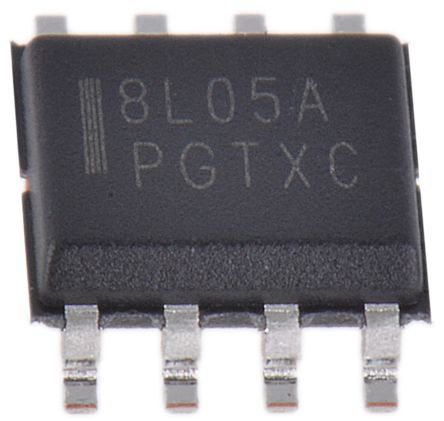

MC78L05ACDR2G
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MC78L05ACDR2GOSCT | Product Category | Voltage Regulators - Standard |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PSRR | 49 dB | Output Type | Fixed |
| Regulator Type | Linear | Voltage Rating | 30 V |
| Line Regulation | 150 mV | Load Regulation | 60 mV |
| Current - Output | 0.1 A | Voltage - Supply | 1.7@40mA V |
| Number of Outputs | 1 | Regulator Topology | Positive Fixed |
| Current Rating (Max) | 100mA | Number of Regulators | 1 |
| Voltage - Input (Min) | 5V | Voltage Regulation - Load | 150 mV |
| Vce Saturation (Max) @ Ib, Ic | 1.7 V @ 40 mA | ||
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.43 g |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Length - Overall | 5(Max) |
| Package Quantity | SOIC N | Size / Dimension | 5 x 4 x 1.5mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
| Supplier Device Package | 8-SOIC N | ||
Product Info
| Spg | 2500 | Type | Linear |
| Series | MC78Lxx | Features | Current Limit|Short Circuit Prote... |
| Polarity | Positive | Topology | Standard |
| Manufacturer | ON Semiconductor | Number of Units | 2500 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | 0 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
