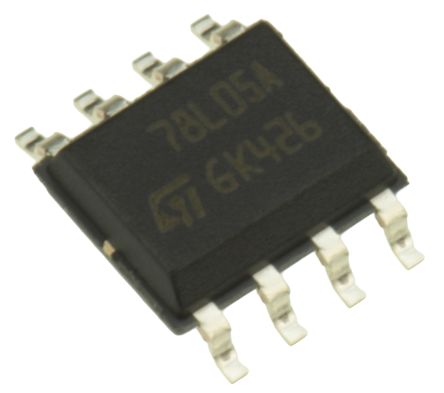

L78L05ACD13TR
| Manufacturer | |
| Description | Standard Regulator Pos 5V 0.1A 8-Pin SO N T/R VREG. POS 5V 0,1A 4% SO8 IC REG LDO 5V 0.1A 8SO L78L05ACD13TR, Voltage Regulator, 0.1A 5V, ±5%, 8-Pin, SOIC Voltage Regulators - Standard 5.0V 0.1A Positive V REG, 1.7VDO, 0.1A, 5V, 8SOIC V REG, 1.7VDO, 0.1A, 5V, 5%, 8SOIC VOLTAGEREG,L78L05ACD13TR Voltage stabiliser; LDO, fixed; 5V; 0.1A; SMD; SO8; Package: roll Linear voltage regulator 5 V SO-8, L78L05ACD13TR, ST STMicroelectronics L78Lxx 系列 线性稳压器, 5 V ±5% /100mA, 8针 SOIC Linear Voltage Regulators 5.0V 0.1A Positive |
| Category |
Business
| MOQ | 2500 | Unit Pack | 2500 |
| Other Names | 497-1182-2 | Product Category | Voltage Regulators - Standard |
| Standard Package | Tape & Reel | Factory Pack Quantity | 2500 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | ||
Electrical
| PSRR | 49 dB | Accuracy | ±4 % |
| Tolerance | 4% | Output Type | Fixed |
| Regulator Type | Linear | Voltage Rating | 30 V |
| Line Regulation | 150 mV | Load Regulation | 60 mV |
| Current - Output | 0.1 A | Voltage - Supply | 1.7@40mA V |
| Number of Outputs | 1 | Regulator Topology | Positive Fixed |
| Overload Protection | YES | Number of Regulators | 1 |
| Voltage - Input (Min) | 5V | Voltage - Output (Max) | :5V |
| Output Voltage Accuracy | �4 % | Current - Quiescent (Iq) | 6.0mA |
| Current - Quiescent (Max) | 6 mA | Voltage - Continuous Operating (Max) (MCOV) | :30V |
Mechanical
| Width | 4mm | Height | 1.65mm |
| Length | 5mm | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8SO N |
| Package Cooled | SO | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 5(Max) | Package Quantity | SO N |
| Size / Dimension | 5 x 4 x 1.65mm | Number of Positions | 8 |
| Shell Size - Insert | 1.65(Max) | Supplier Device Package | 8-SO |
Product Info
| Spg | 2500 | Mode | POS |
| Type | Linear | DELETED | Compliant |
| Features | Short Circuit Protection|Thermal ... | Polarity | Positive |
| Topology | Standard | Matchcode | L78L05ACD13TR |
| Number of Units | 2500 | Standard Leadtime | 36 weeks |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | 0 to 125 °C | Operating Temperature - Junction | 0°C |
