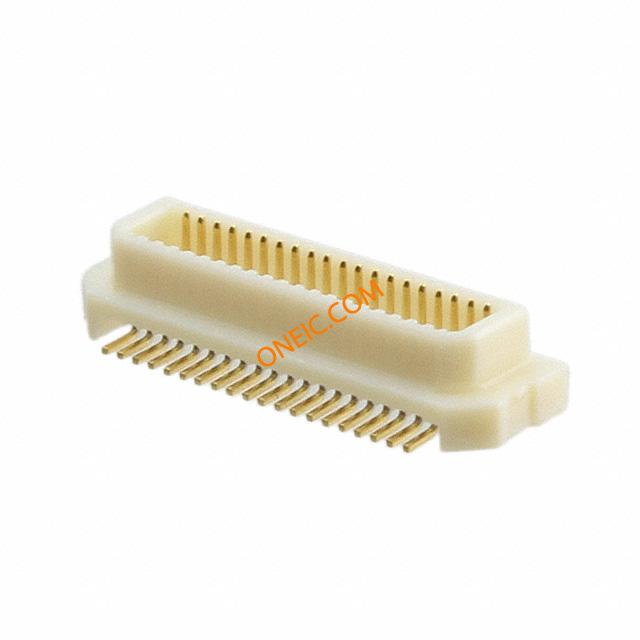

点击放大查看
AXK640247YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 40 POS 0.5mm Conn Board to Board HDR 40 POS 0.5mm Solder ST SMD Embossed T/R CONN HEADER BRD/BRD .5MM 40POS |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 255-3243-1 | 产品类别 | Board to Board & Mezzanine Connectors |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 接触电阻 | 60 |
| 最大额定电流 | 0.5 A | 最小输入电压 | 60VDC|60VAC |
机械参数
| 深度 | 3.8 | 间距 | 0.5 mm |
| 高度 | 2.9 | 包装方式 | Reel |
| 端接方式 | Solder | 安装类型 | Vertical |
| 连接器类型 | Header, Outer Shroud Contacts | 接触镀层 | Gold |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 触头材料 | Copper Alloy | 壳体材料 | Resin |
| 总长度 | 13.2 | 端接样式 | SMD |
| 板面高度 | 0.114" (2.90mm) | 触点数 | 40 |
| 位数 | 40 | 配接堆叠高度 | 3.5mm |
产品信息
| 类型 | Board to Board | 连接器性别 | HDR |
| 系列 | P5 | 产品子类型 | Headers |
