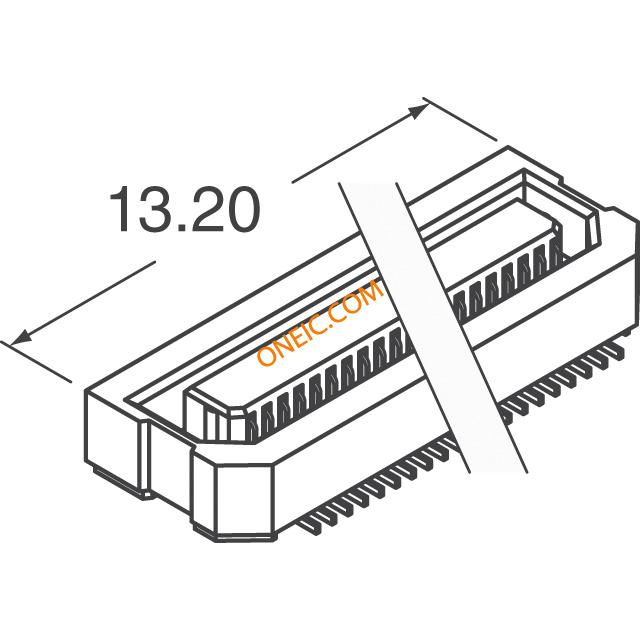

AXK540147YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN SOCKET P5K 40 POS 0.5mm Conn Board to Board SKT 40 POS 0.5mm Solder ST SMD Embossed T/R CONN SOCKET P5K .5MM 40POS SMD P5K Series 40 Position 0.5 mm Pitch Board to Board SMT Socket Connector |
| Category |
商业参数
| 其他名称 | 255-2573-2 | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 接触电阻 | 80 |
| 最大额定电流 | 500 mA | 最小输入电压 | 60VDC|60VAC |
机械参数
| 深度 | 4.6 | 间距 | 0.020" (0.50mm) |
| 高度 | 6.05 | 包装方式 | Embossed Tape and Reel |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | Socket, Center Strip Contacts | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 堆叠方法 | 3 mm |
| 触头材料 | Copper Alloy | 壳体材料 | Resin |
| 总长度 | 13.2 | 端接样式 | SMD |
| 板面高度 | 0.085" (2.16mm) | 触点数 | 40 |
| 位数 | 40 | 安装高度（最大） | 0.085" (2.16mm) |
| 配接堆叠高度 | 3mm, 3.5mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | SKT |
| 系列 | P5 | 产品子类型 | Receptacles |
环境参数
| 插拔次数 | 3mm, 3.5mm | ||
