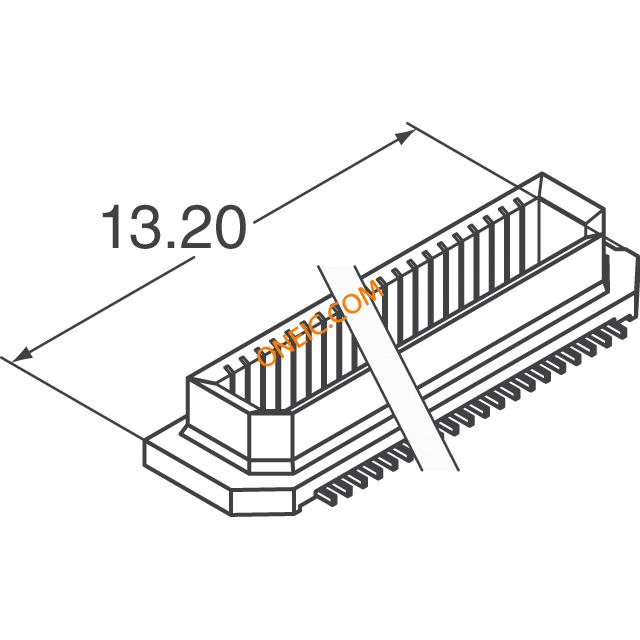

AXK640347YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN HEADER P5K 40 POS 0.5mm Conn Board to Board HDR 40 POS 0.5mm Solder ST SMD Reel CONN HEADER P5K .5MM 40POS SMD AXK6,P5K,Header,0.5mmpitch,40-pin,Ni-barrier,,RoHSconforming, |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 255-2555-2 | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1500 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 接触电阻 | 60 |
| 最大额定电流 | 0.5 A | 最小输入电压 | 60VDC|60VAC |
机械参数
| 深度 | 5 | 间距 | 0.5 mm |
| 高度 | 2.35 | 包装方式 | Reel |
| 端接方式 | Solder | 安装类型 | Vertical |
| 连接器类型 | Header, Outer Shroud Contacts | 接触镀层 | Gold |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 堆叠方法 | 3 mm | 触头材料 | Copper Alloy |
| 壳体材料 | Resin | 总长度 | 13.2 |
| 端接样式 | SMD | 板面高度 | 0.094" (2.40mm) |
| 触点数 | 40 | 位数 | 40 |
| 配接堆叠高度 | 3mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | HDR |
| 系列 | P5 | 产品子类型 | Headers |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
相关型号

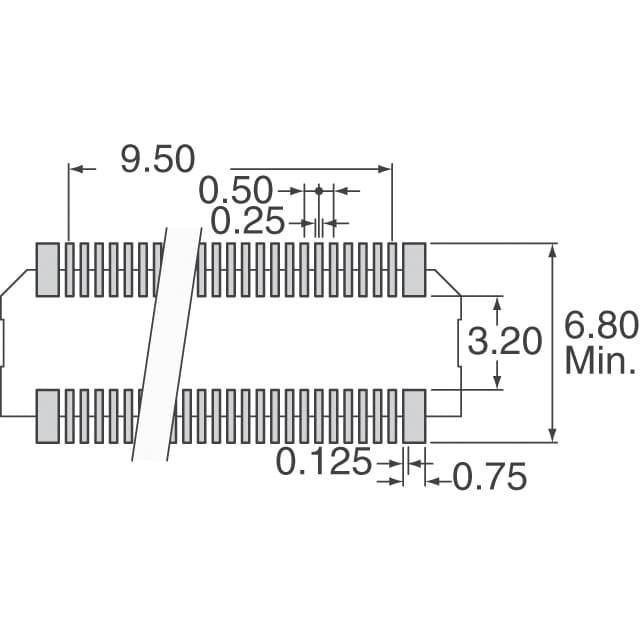

AXK540147YG
