点击放大查看

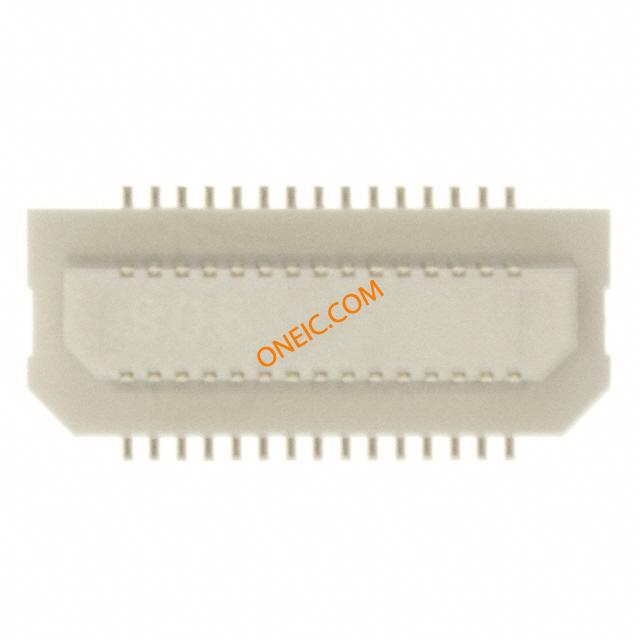

AXK6S30447YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN HEADER P5KS 30 POS 0.5mm Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD Embossed T/R CONN HEADER P5KS .5MM 30POS SMD P5KS Series 30 Position 0.5 mm Pitch Board to Board SMT Header Connector |
| Category |
Business
| Other Names | 255-2547-2 | Standard Package | 1,000 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 60 |
| Current Rating (Max) | 500 mA | Voltage - Input (Min) | 60VDC|60VAC |
Mechanical
| Depth | 4.2 | Pitch | 0.020" (0.50mm) |
| Height | 3.3 | Packaging | Embossed Tape and Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Header, Outer Shroud Contacts | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Stacking Method | 7 mm |
| Contact Material | Copper Alloy | Housing Material | Resin |
| Length - Overall | 10.7 | Termination Style | SMD |
| Height Above Board | 0.130" (3.30mm) | Number of Contacts | 30 |
| Number of Positions | 30 | Height - Seated (Max) | 0.130" (3.30mm) |
| Mated Stacking Heights | 4mm, 4.5mm, 7mm | ||
Product Info
| Type | Board to Board | Gender | HDR |
| Series | P5 | Product Type | Headers |
Environmental
| Mating Cycles | 4mm, 4.5mm, 7mm | ||
