AXK6S30647YG
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ CONN HEADER P5KS 30 POS 0.5mm Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD Reel CONN HEADER P5KS .5MM 30POS SMD Board to Board & Mezzanine Connectors CONN HEADER P5KS 30 POS 0.5mm P5KS Series 30 Position 0.5 mm Pitch Board to Board SMT Header Connector |
| Category |
商业参数
| 其他名称 | 255-2545-2 | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 60 V | 接触电阻 | 60 |
| 最大额定电流 | 500 mA | 最小输入电压 | 60VDC|60VAC |
机械参数
| 深度 | 4.2 | 间距 | 0.020" (0.50mm) |
| 高度 | 5.3 | 包装方式 | Reel |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | Header, Outer Shroud Contacts | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 堆叠方法 | 9 mm |
| 触头材料 | Copper Alloy | 壳体材料 | Resin |

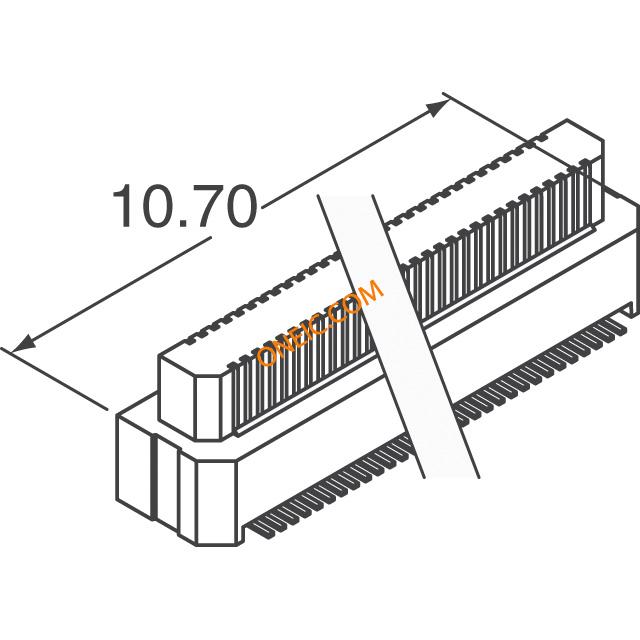

| 总长度 | 10.7 | 端接样式 | SMD |
| 板面高度 | 0.209" (5.30mm) | 触点数 | 30 |
| 位数 | 30 | 安装高度（最大） | 0.209" (5.30mm) |
| 配接堆叠高度 | 6mm, 6.5mm, 9mm | ||
产品信息
| 类型 | Board to Board | 连接器性别 | HDR |
| 系列 | P5 | 产品子类型 | Headers |
环境参数
| 插拔次数 | 6mm, 6.5mm, 9mm | ||
