0707727
| Manufacturer | |
| Description | Pluggable Terminal Blocks DFK-MSTB 2.5/ 8-G-5,08 WW(1X1) TERM BLOCK |
| Category |
Business
| Product | Headers | Tradename | COMBICON Control |
| Other Names | DFK-MSTB 2 5/ 8-G-5 08 WW(1X1) | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current - UL | 10A | Voltage - UL | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 12 A |
Mechanical
| Color | Green | Pitch | 0.200" (5.08mm) |
| Width | 2.400" (60.96mm) | Contact Finish | Tin |
| Mounting Style | Panel / Box - Feed Through | Panel Thickness | 0.020 ~ 0.158" (0.5 ~ 4.0mm) |
| Panel Mount Type | Screw Mount - Front Flange | Number of Contacts | 8 |
| Rear Panel Wire Connection | Wire Wrap Terminals | Front Panel Wire Connection | Header, Male Pins |
Product Info
| Series | DFK-MSTB | Features | Lock Opening |
| Number of Levels | 1 | Positions Per Level | 8 |
Documents & Media
Similar Parts
1755477
Phoenix Contact
Terminal Block Tools & Accessories MSTB-BL Connector Accessories Cap TERMINAL BLOCK KEYING CAP GREEN Keying cap, for forming sections, plugs onto header pin, green insulating material Keying Cap, For Forming Sections, Plugs Onto Header Pin MSTB-BL

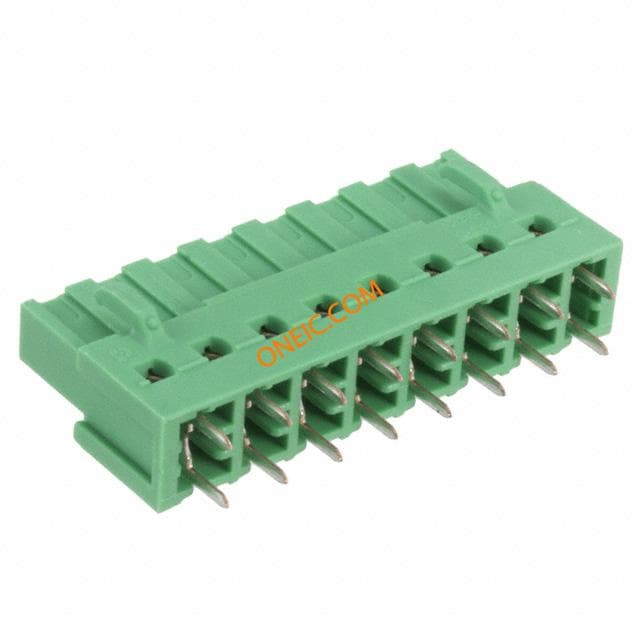

1786006
