1786006
| Manufacturer | |
| Description | Pluggable Terminal Blocks ICV 2 5/ 8-G-5 08 Conn Wire to Board HDR 8 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM Inverted hdr,5.08mm pitch,vertical,8way Conn;TermBlk;PCB;Header;SnglLvl;Sldr;8Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON ICV 系列 5.08mm节距 8路 (1排) 直 印刷电路板接线端子块, 焊接端接, 12A , 通孔 |
| Category |
Business
| Product | Headers - Inverted | Tradename | COMBICON Control |
| Part # Aliases | 2,5/ 8-G-5,08 ICV | Product Category | Pluggable Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | UL,CUL,CSA,CB,GOST,VDE-PZI | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 320 V | Number of Poles | 8Poles |
| Current Rating (Max) | 12A | Voltage - Input (Min) | 320V |
Mechanical
| Color | Green | Depth | 10.2 |
| Pitch | 0.200" (5.08mm) | Height | 19 |
| Weight | 5.820204 oz | Packaging | Bulk |
| Orientation | 直 | Termination | Solder |
| Housing Color | Green | Mounting Type | Straight |
| Contact Finish | Tin | Number of Rows | 1 |
| Contact Material | Tin Plated | Housing Material | Polyamide |
| Length - Overall | 42.64 | Primary Material | PCB |
| Termination Rows | 焊接 | Pin Hole Diameter | 5.08mm |
| Termination Style | Through Hole | Header Orientation | Vertical |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Header, Female Sockets | ||
Product Info
| Type | Wire to Board | Level | SingleLevel |
| Gender | HDR | Series | ICV 2.5 |
| Features | Retention Latches | CAD Drawing | 3D CAD Model |
| Manufacturer | COMBICON | Number of Levels | 1 |
| Base Product Number | ICV2,5/8-G-5,08 | Positions Per Level | 8 |
Documents & Media
Similar Parts
1735824
Phoenix Contact
Pluggable Terminal Blocks 8P 5.08MM 90 DEG HDR Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 8-G-5,08 MSTBW25/8-G-508
1847165
Phoenix Contact
Pluggable Terminal Blocks MSTBO 2 5/ 8-GR-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GR-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON
1786239
Phoenix Contact
Pluggable Terminal Blocks IC 2 5/ 8-ST-5 08 5.08mm 8P HEADER Conn Terminal Block M 8 POS 5.08mm Screw RA 12A TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block 8 Way, Screw Down, 250V Conn;TermBlk;PCB;Plug;Screw;8;5.08mm;24-12AWG;Green;12A;250V;M3 Phoenix Contact 8 路 无熔丝端子块, 螺钉拧紧端接, 320 V
1762431
Phoenix Contact
Pluggable Terminal Blocks 8P 5.08mm Conn Shrouded Header HDR 16 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 16POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 8-G1-5,08 MDSTB25/8-G1-508 Phoenix Contact COMBICON MDSTB 系列 8路 5.08mm节距 PCB 接线端子块 , 焊接端接, 10A
0707057
Phoenix Contact
Pluggable Terminal Blocks DFK-MSTB 2.5/8-G Conn Shrouded Header HDR 8 POS 5.08mm Solder Lug ST Wall Mount PAN MNT HEADER 5.08 MM SOLD 8POS Phoenix Contact DFK-MSTB Series 5.08mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination Phoenix Contact COMBICON DFK-MSTB 系列 5.08mm节距 8路 (1排) 直 插头外壳, 焊接端接 , 壁挂式

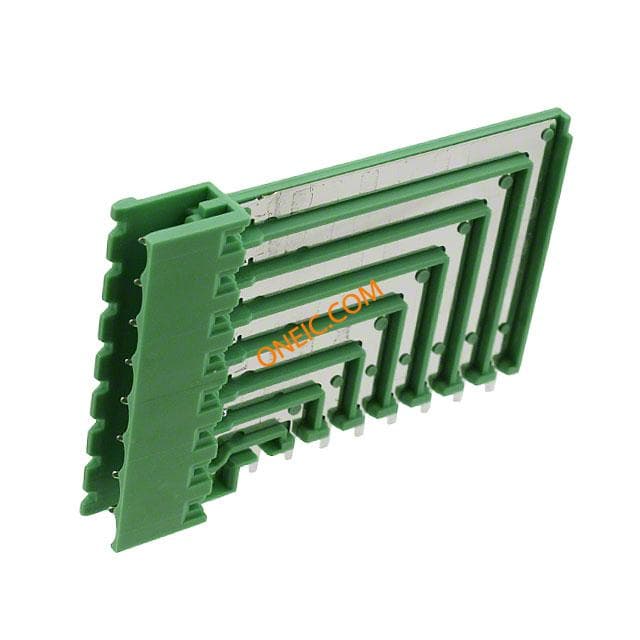

1850495
Phoenix Contact
Pluggable Terminal Blocks MSTBO 2 5/ 8-GL-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBO 2,5/ 8-GL-5,08 Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;8Pole;5.08mmPitch;COMBICON

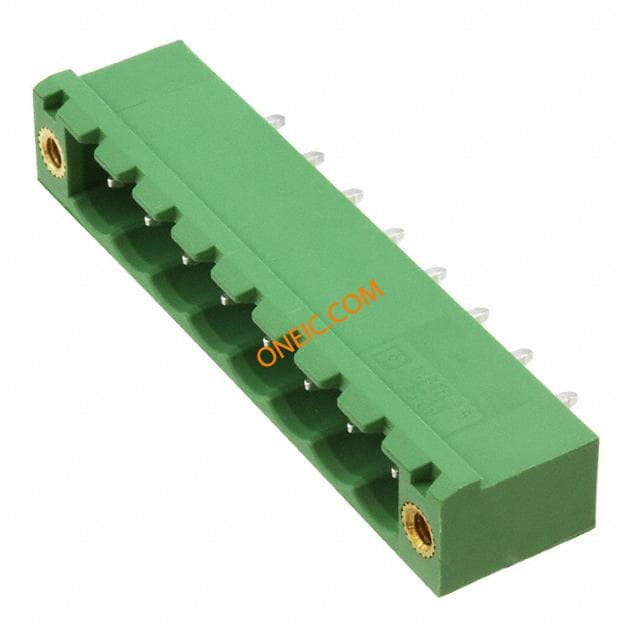

1808528
Phoenix Contact
Pluggable Terminal Blocks MSTBV 2 5/8-GEH-5 08 Conn Shrouded Header HDR 8 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM Header for PCB plug connector MSTBV 2,5/ 8-GEH-5,08 MSTBV25/8-GEH-508

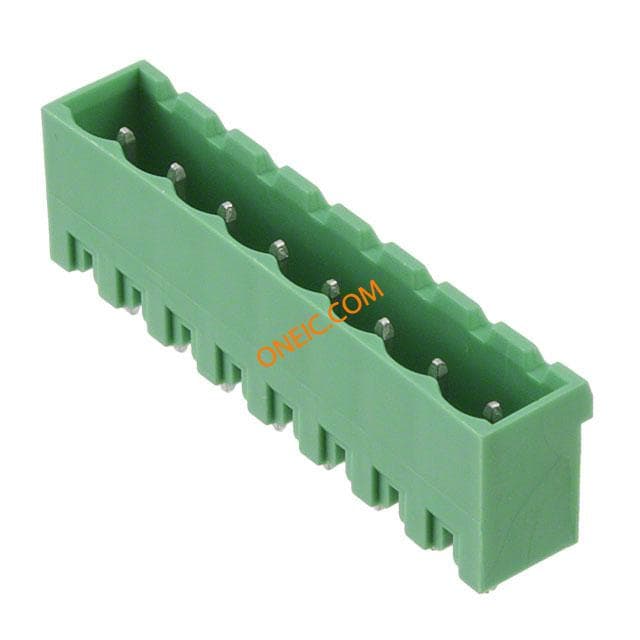

1859577
