点击放大查看
1763087
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3P 5.08mm Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 3-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;Sldr;3Pole;5.08mmPitch;COMBICON |
| Category |
商业参数
| 产品 | Headers | 交货时间 | 20 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Headers and PCB Receptacles |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 认证机构 | UL,CUL,CSA | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 12A | 电压 | 300V |
| 额定电压 | 250 V | 极数 | 3Poles |
| 最大额定电流 | 10 A | 最小输入电压 | 320V |
机械参数
| 颜色 | Green | 深度 | 23.7 |
| 间距 | 0.200" (5.08mm) | 高度 | 22.1 |
| 重量 | 5.714382 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 外壳颜色 | Green |
| 安装类型 | Straight | 接触镀层 | Tin |
| 排数 | 2 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 17.78 | 主要材料 | PCB |
| 插针孔直径 | 5.08mm | 端接样式 | Through Hole |
| 排针方向 | Vertical | 触点数 | 3 |
| 位数 | 6 | 接线端子类型 | Header, Male Pins, Shrouded (2 Side) |
产品信息
| 类型 | Shrouded Header | 级别 | DoubleLevel |
| 连接器性别 | HDR | 系列 | MDSTBV |
| 制造商全称 | COMBICON | 行业别名 | MDSTBV 2, 5/ 3-G-5, 08 |
| 层数 | 2 | 基础产品编号 | MDSTBV2,5/3-G-5,08 |
| 每层位数 | 3 | ||
Documents & Media
相关型号
1835106
Phoenix Contact
Pluggable Terminal Blocks 3P 5.08mm Conn Terminal Block F 3 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 3-STF-5,08 MVSTBR25/3-STF-508
1759990
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 BK HEADER NOMINAL CURRENT 12A NUMBER OFPOSITIONS 3 TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508BK
1902738
Phoenix Contact
Pluggable Terminal Blocks IC 2.5/ 3-G-5.08 ABGY TERM BLOCK HDR 3POS R/A 5.08MM IC25/3-G-508ABGY
1873061
Phoenix Contact
プラグ着脱可能ターミナルブロック FKC 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm ST Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 3-ST-5,08 Pluggable Terminal Blocks FKC 2 5/ 3-ST-5 08 Conn;TermBlk;PCB;Plug;Springcage;3;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 3 路 母 绿色 直 插头, 电缆安装, 推入式端接
1719125
Phoenix Contact
プラグ着脱可能ターミナルブロック SMSTB 2.5/ 3-ST- 5,08 ABGY AU TERM BLOCK PLUG 3POS 5.08MM Printed-circuit board connector SMSTB 2,5/ 3-ST-5,08 ABGY AU Pluggable Terminal Blocks SMSTB 2.5/ 3-ST- 5,08 ABGY AU SMSTB25/3-ST-508ABGYAU
1792252
Phoenix Contact
Pluggable Terminal Blocks 5.08 3P PLUG 90DEG Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 3POS 5.08MM PLUG, FREE, 5.08MM, 3WAY Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V
1779990
Phoenix Contact
Pluggable Terminal Blocks MSTBT 2 5/ 3-ST-5 08 Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector MSTBT 2,5/ 3-ST-5,08 Conn Terminal Blocks F 3 POS 5.08mm Screw RA Cable Mount 12A MSTBT25/3-ST-508 Phoenix Contact COMBICON MSTBT 系列 5.08mm 节距 3 路 母 绿色 插头, 螺钉端接
1757022
Phoenix Contact
Pluggable Terminal Blocks 5.08 3P PLUG 180DEG Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 3POS STR 5.08MM MSTB 2,5/ 3-ST-5,08 Conn;TermBlk;Plug;Screw;3;5.08mm;30-12AWG;10A;300V;PA Phoenix Contact 3 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 630 V

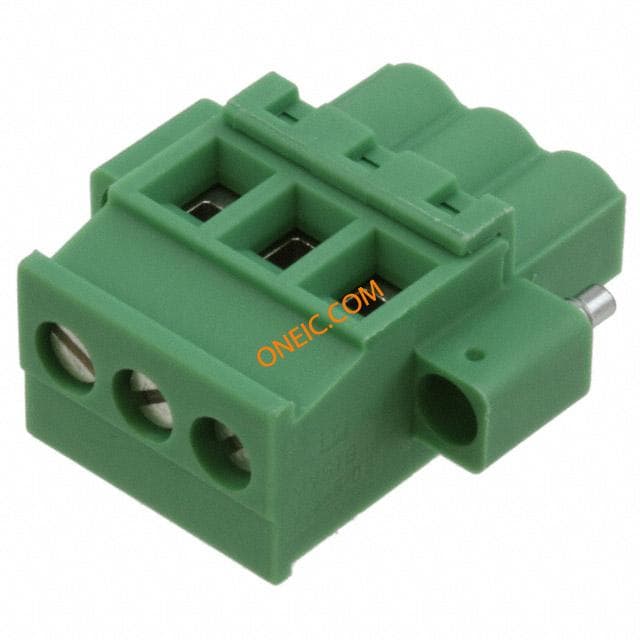

1834916
