Business

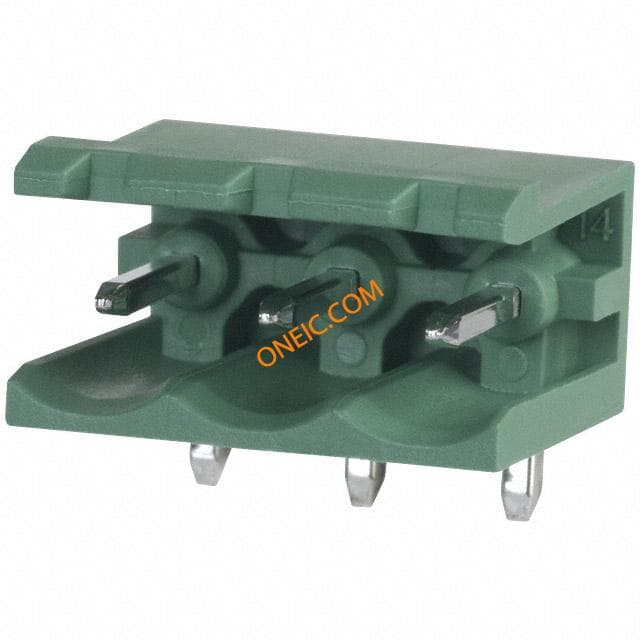

| Product | Headers - Inverted | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL,cULRecognized | Approval Agency | UL,CUL,CSA,CB,GOST,VDE-PZI |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 320 V | Number of Poles | 3Poles |
| Current - Output | 12A | Voltage - Nominal | 320V |
| Current Rating (Max) | 12A | Voltage - Input (Min) | 320V |
| Voltage - Supply (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 19 mm |
| Pitch | 0.200" (5.08mm) | Height | 10.2 mm |
| Weight | 5.784930 oz | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Housing Color | Green | Mounting Type | Right Angle |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 17.24 mm | Primary Material | PCB |
| Termination Rows | 焊接 | Pin Hole Diameter | 5.08mm |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 3 | Number of Positions | 3 |
| Terminal Block Type | Header, Female Sockets | ||
Product Info
| Type | Wire to Board | Level | SingleLevel |
| Gender | HDR | Series | IC |
| Features | Retention Latches | CAD Drawing | 3D CAD Model |
| Manufacturer | COMBICON | Number of Levels | 1 |
| Base Product Number | IC2.5/3-G-5.08 | Positions Per Level | 3 |
