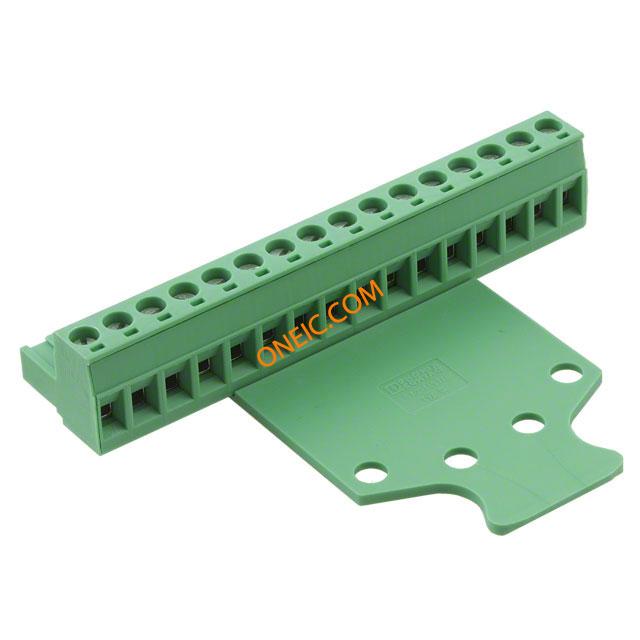

1764248
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTB 2 5/16-STZ-5 08 Conn Terminal Block F 16 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 16POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/16-STZ-5,08 MSTB25/16-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 16 路 母 绿色 插头, 螺钉端接 |
| Category |
商业参数
| 产品 | Plugs | 交货时间 | 12 Days |
| 商标名 | COMBICON Control | 子类别 | Connector Terminal Blocks |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 61.8 |
| 间距 | 0.200" (5.08mm) | 重量 | 4.550341 oz |
| 材料（通用） | 聚酰胺，镀锡 | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 连接器类型 | 母座 |
| 接触镀层 | Tin | 排数 | 1 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide |
| 总长度 | 81.28 | 端接排数 | 螺钉 |
| 端接样式 | Screw | 触点数 | 16 |
| 位数 | 16 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 24-12 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MSTB | 产品特性 | Retention Latches (Non-Wire Side), Strain Relief |
| 行业别名 | MSTB 2, 5/16-STZ-5, 08 | 层数 | 1 |
| 每层位数 | 16 | ||
