1788677
| Manufacturer | |
| Description | Pluggable Terminal Blocks MVSTBU 2 5/16-GB-5 0 Conn Terminal Block F 16 POS 5.08mm Screw Panel Mount 12A TERM BLOCK RCPT 16POS 5.08MM Header for PCB plug connector MVSTBU 2,5/16-GB-5,08 Plug component, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 5.08 mm, Number of positions: 16, Connection type: Screw connection, Assembly: Direct mounting PLUGCOMPONENT,PITCH:5.08MMPOS16 |
| Category |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 10A | 电压 | 300V |
| 额定电压 | 320 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 20.4 |
| 间距 | 0.200" (5.08mm) | 高度 | 17.3 |
| 重量 | 7.301710 oz | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Panel Mount | 接触镀层 | Tin |
| 安装样式 | Panel / Box | 排数 | 1 |
| 壳体材料 | Polyamide | 总长度 | 92.6 |
| 触点数 | 16 | 位数 | 16 |
| 接线端子类型 | Receptacle, Male Pins | 线规或范围 - AWG | 24-12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | MVSTBU | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 16 |
Documents & Media
相关型号
1808955
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2 5/16-ST-5 08 Conn Housing F 16 POS 5.08mm Crimp ST Cable Mount TERM BLOCK PLUG 16POS STR 5.08MM MSTBC25/16-ST-508
1857391
Phoenix Contact
Pluggable Terminal Blocks MSTB 2.5/16-ST- 5,08 BD:1-16 Conn Terminal Block 16 POS 5.08mm Screw 12A TERM BLOCK PLUG 16POS STR 5.08MM MSTB25/16-ST-508BD:1-16
1764248
Phoenix Contact
Pluggable Terminal Blocks MSTB 2 5/16-STZ-5 08 Conn Terminal Block F 16 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 16POS STR 5.08MM COMBICON PCB plugs MSTB 2,5/16-STZ-5,08 MSTB25/16-STZ-508 Phoenix Contact COMBICON MSTB 系列 5.08mm 节距 16 路 母 绿色 插头, 螺钉端接
1757158
Phoenix Contact
Pluggable Terminal Blocks 16P 5.08mm 90DEG MSTB 2 5/16-ST-5 08 Conn Terminal Block F 16 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 16POS STR 5.08MM Non-Fused Terminal Block Cable Mount 16 Way, Screw Down, 250V Conn Terminal Blocks F 16 POS 5.08mm Screw RA Cable Mount 12A Conn;TermBlk;Plug;Screw;16;5.08mm;24-12AWG;12A;250V;M3 Phoenix Contact 16 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 250 V
.jpg&w=3840&q=75)

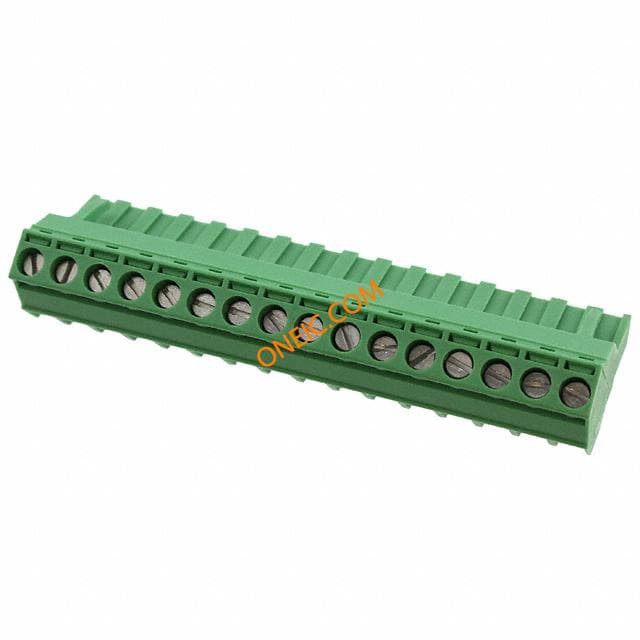

1826429
