点击放大查看
1769078
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Lead Time | 31 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
Mechanical
| Color | Green | Depth | 21.3 |
| Pitch | 5.08 mm | Height | 15 |
| Length | 40.64 | Weight | 4.550341 oz |
| Material | 聚酰胺，镀锡 | End Style | Screw |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Orientation | Right Angle | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Connector Type | 母座 |
| Contact Finish | Tin | Plug Wire Entry | 180° |
| Termination Rows | 螺钉 | Termination Style | Screw |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Plug, Female Sockets | Material - Insulation | Polyamide |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTBP | Features | Retention Latches (Non-Wire Side) |
| Industry Aliases | MSTBP 2, 5/ 8-ST-5, 08 | Number of Levels | 1 |
| Positions Per Level | 8 | Other Specifications | 1 |
| Assembly Configuration | Cable Mount | ||
Documents & Media
PDF Document
Similar Parts
1735824
Phoenix Contact
$24.1400
Details
1847165
Phoenix Contact
$50.3200
Details
1741656
Phoenix Contact
$10.2000
Details

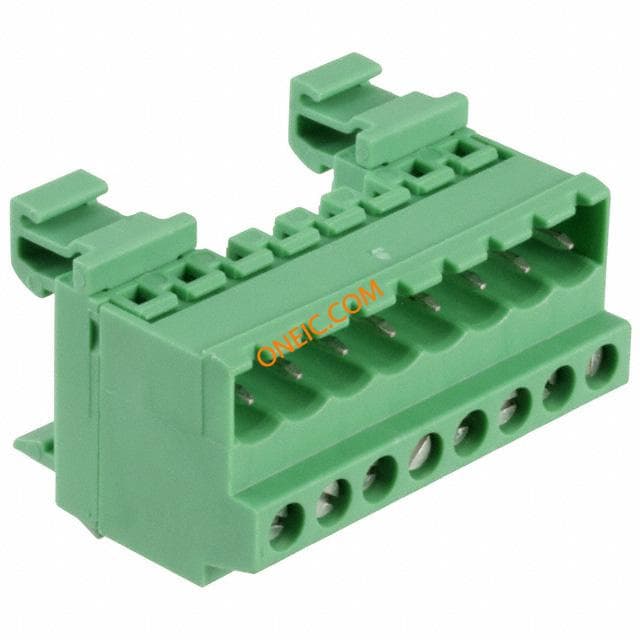

1788787
