1735824
| Manufacturer | |
| Description | Pluggable Terminal Blocks 8P 5.08MM 90 DEG HDR Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM Header for PCB plug connector MSTBW 2,5/ 8-G-5,08 MSTBW25/8-G-508 |
| Category |
Business
| Product | Headers | Lead Time | 12 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Gray | Depth | 12 |
| Pitch | 5.08 mm | Height | 12.4 |
| Weight | 5.396916 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Right Angle | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Housing Material | Polybutylene Terephthalate (PBT) | Length - Overall | 20.32 |
| Termination Style | Through Hole | Header Orientation | 90°, Right Angle |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | ||
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MSTBW | Features | Standoffs |
| Industry Aliases | MSTBW 2, 5/ 8-G-5, 08 | Number of Levels | 1 |
| Positions Per Level | 8 | ||
Documents & Media
Similar Parts
1777701
Phoenix Contact
Pluggable Terminal Blocks MVSTBR 2 5/ 8-ST-5 0 CONNECTOR TERMINAL BLOCKS TERM BLOCK PLUG 8POS 5.08MM Printed-circuit board connector MVSTBR 2,5/ 8-ST-5,08 BK MVSTBR25/8-ST-508BK
1873113
Phoenix Contact
Pluggable Terminal Blocks FKC 2 5/ 8-ST-5 08 Conn Spring Cage F 8 POS 5.08mm ST 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector FKC 2,5/ 8-ST-5,08 Conn;TermBlk;PCB;Plug;Springcage;8;5.08mm;24-12AWG;Green;12A;250V Phoenix Contact COMBICON FKC 系列 5.08mm 节距 8 路 母 绿色 直 插头, 电缆安装, 推入式端接
1809569
Phoenix Contact
Pluggable Terminal Blocks MSTBC 2.5/ 8-STZ- 5,08 Conn Wire to Wire F 8 POS 5.08mm Crimp ST Cable Mount TERM BLOCK PLUG 8POS STR 5.08MM MSTBC25/8-STZ-508
1769078
Phoenix Contact
Pluggable Terminal Blocks MSTBP 2.5/ 8-ST-5.08 Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Printed-circuit board connector MSTBP 2,5/ 8-ST-5,08 MSTBP25/8-ST-508 Phoenix Contact COMBICON MSTBP 系列 5.08mm 节距 8 路 母 绿色 插头, 螺钉端接
1777345
Phoenix Contact
プラグ着脱可能ターミナルブロック FRONT-MSTB 2 5/ 8-ST Conn Terminal Block F 8 POS 5.08mm Screw ST Cable Mount 12A TERM BLOCK PLUG 8POS STR 5.08MM Non-Fused Terminal Block Cable Mount 8 Way, Screw Down, 250V Pluggable Terminal Blocks FRONT-MSTB 2 5/ 8-ST Conn Terminal Blocks F 8 POS 5.08mm Screw ST Cable Mount 12A FRONT-MSTB25/8-ST-508

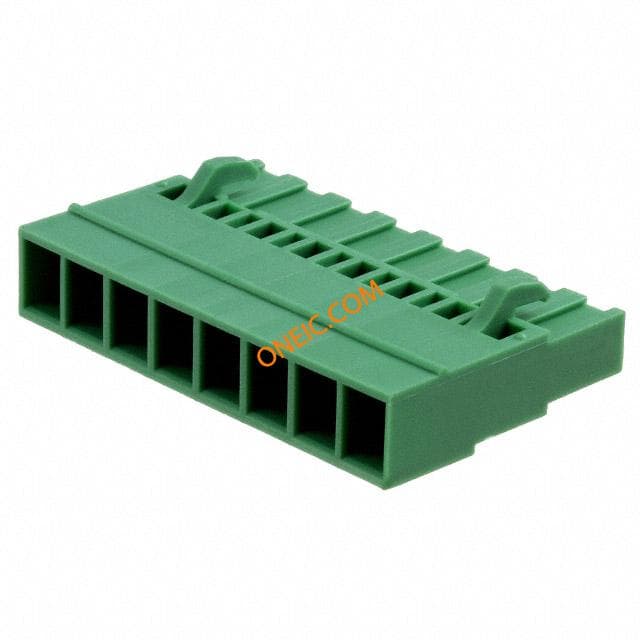

1808874
