点击放大查看
1792812
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Pluggable Terminal Blocks | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 12.6 mm |
| Pitch | 0.200" (5.08mm) | Height | 26 mm |
| Length | 7 mm | Weight | 4.691437 oz |
| Material | Nylon | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Connector Type | :Rectangular Power |
| Contact Finish | Tin | Mounting Style | Cable |
| Number of Rows | 1 | Plug Wire Entry | 270° |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 40.64 mm | Termination Style | Through Hole |
| Number of Contacts | 8 | Number of Positions | 8 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
| Wire Gauge or Range - mm2 | 12 | 1st Connector Mounting Type | :Cable |
| Number of Positions/Bay/Row | 8 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | :MVSTBW | Features | Retention Latches (Non-Wire Side) |
| CAD Drawing | 3D CAD Model | Industry Aliases | MVSTBW 2, 5/ 8-ST-5, 08 |
| Number of Levels | 1 | Positions Per Level | 8 |
Documents & Media
PDF Document
Similar Parts
1735824
Phoenix Contact
$24.1400
Details
1847165
Phoenix Contact
$50.3200
Details

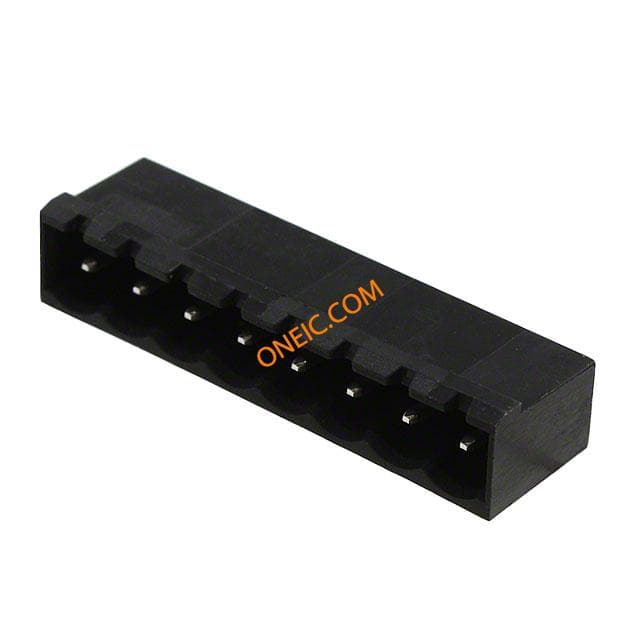

1741656
Phoenix Contact
$10.2000
Details
1759075
Phoenix Contact
$19.9920
Details
1762431
Phoenix Contact
$57.4056
Details
1850495
Phoenix Contact
$28.1520
Details
1755794
Phoenix Contact
$13.1240
Details
1757307
Phoenix Contact
$3.4386
Details
1767436
Phoenix Contact
$28.3696
Details

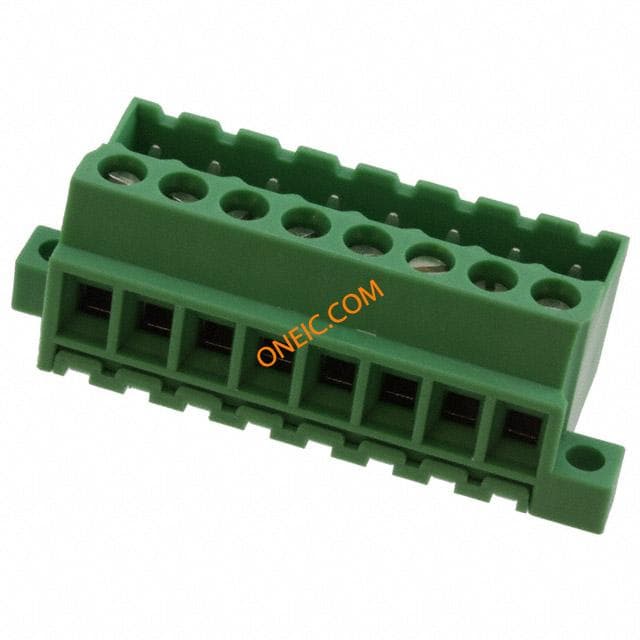

1788596
