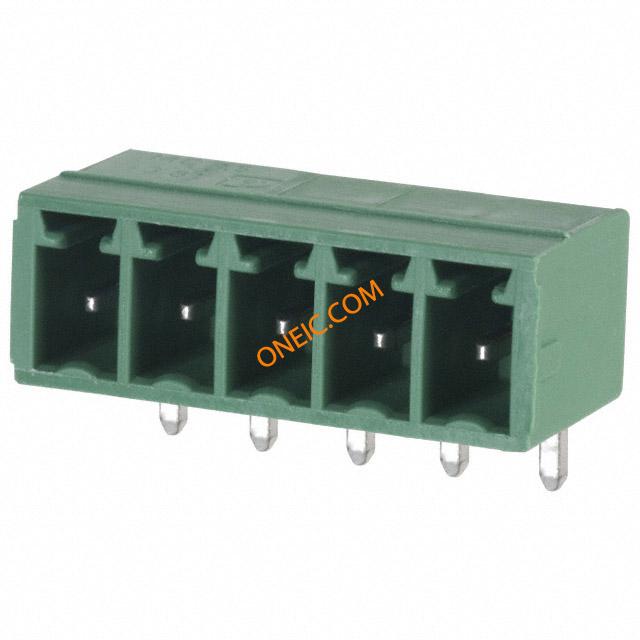

1803303
| Manufacturer | |
| Description | Pluggable Terminal Blocks 3.81 5P HEADER 90DEG Conn Shrouded Header HDR 5 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 5POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;5Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 5路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A |
| Category |
商业参数
| 产品 | Headers | 商标名 | COMBICON Control |
| 零件号别名 | 1,5/ 5-G-3,81 MC | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 250 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 标准 | CSACertified,cULListed,ULListed | 认证机构 | UL,CUL,CSA |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 极数 | 5Poles |
| 输出电流 | 8A | 标称电压 | 160V |
| 最大额定电流 | 8 A | 最小输入电压 | 160V@IEC|300V@UL |
| 保护电压（VP）（2416） | 2.5kV | ||
机械参数
| 颜色 | Green | 深度 | 9.2 |
| 间距 | 0.150" (3.81mm) | 高度 | 7.25 |
| 长度 | 7 mm | 重量 | 4 oz |
| 包装方式 | Bulk | 方向 | angled |
| 端接方式 | Solder | 柱间距 | 3.81mm |
| 孔径 | 1.2mm | 外壳颜色 | Green |
| 安装类型 | Right Angle | 连接器类型 | male |
| 接触镀层 | Tin | 安装样式 | Soldering |
| 排数 | 1 | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 20.44 | 包装数量 | 10 |
| 主要材料 | PCB | 尺寸/外形 | 20.44mmLx18.7mmWx11.1mmH |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 插针孔直径 | 3.81mm | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 绝缘材料 - 材质 | PBT | 法兰下方引脚尺寸 | 0.8x0.8mm |
产品信息
| SPG | 10 | 类型 | Shrouded Header |
| 级别 | SingleLevel | 连接器性别 | HDR |
| 系列 | MC | 产品特性 | 90Deg |
| CAD图纸 | 3D CAD 模型 | 制造商全称 | COMBICON |
| 单元数量 | 1 | 层数 | 1 |
| 基础产品编号 | MC1,5/5-G-3,81 | 每层位数 | 5 |
