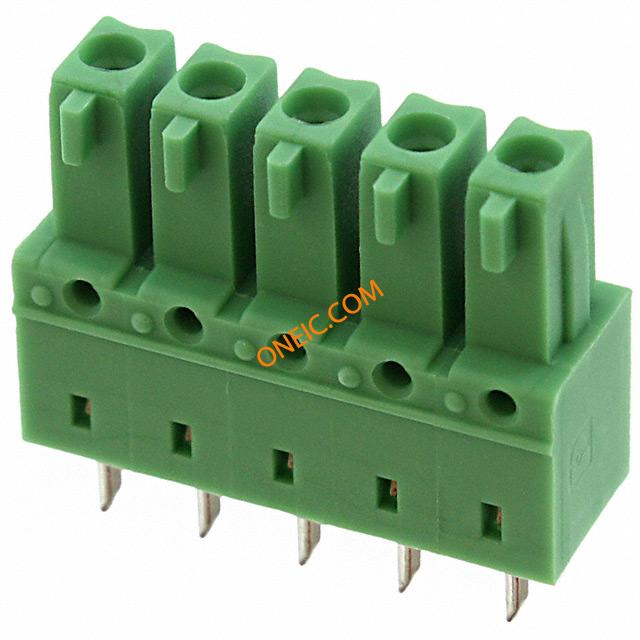

ONEIC.US
1875454

点击放大查看

1875454

Manufacturer
Phoenix Contact GmbH & Co. KG
Description
Pluggable Terminal Blocks IMCV 1 5/ 5-G-3 81 Conn Wire to Board HDR 5 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 5POS VERT 3.81MM Header for PCB plug connector IMCV 1,5/ 5-G-3,81 Header, nominal current: 8 A, rated voltage: 160 V, pitch: 3.81 mm, no. of positions: 5, mounting: Soldering IMCV15/5-G-381 Phoenix Contact COMBICON IMCV 系列 5路 3.81mm节距 PCB 接线端子块 , 焊接端接, 8A
Category
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

产品Headers - Inverted商标名COMBICON Control
产品类别Pluggable Terminal Blocks标准包装数量50
工厂包装数量50

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
材料阻燃等级UL 94 V-0

电气参数

电流8A电压300V
额定电压160 V最大额定电流8 A
最小输入电压160V最小供电电压160V

机械参数

颜色Green深度7.8
间距0.150" (3.81mm)高度14.5 mm
重量4.268149 oz包装方式Bulk
端接方式Solder外壳颜色Green
安装类型Straight接触镀层Tin
安装样式Through Hole排数1
触头材料锡壳体材料Polyamide
总长度19.84 mm端接排数焊接
端接样式Through Hole排针方向Vertical
触点数5位数5
接线端子类型Header, Female Sockets

产品信息

类型Wire to Board连接器性别HDR
系列IMCV层数1
每层位数5

Documents & Media

PDF Document
1875454
