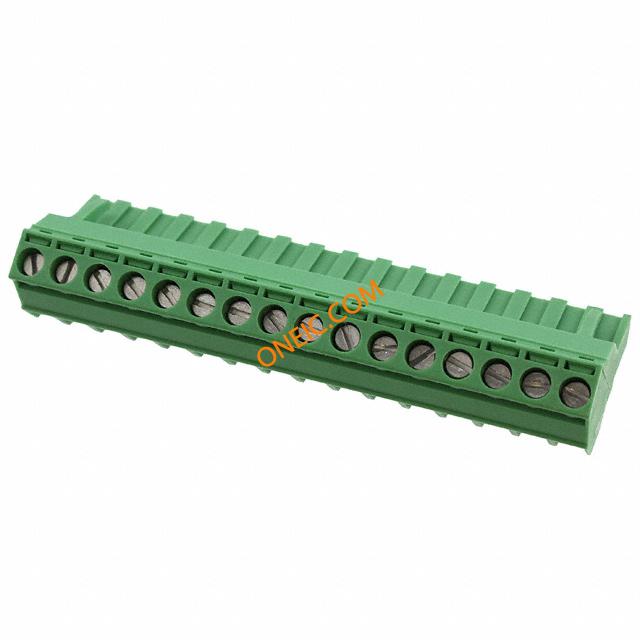

1826429
| Manufacturer | |
| Description | Pluggable Terminal Blocks 16 POS. 5MM 45 DEG. NC/NR Conn Terminal Block F 16 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG 16POS 5.08MM Printed-circuit board connector SMSTB 2,5/16-ST-5,08 SMSTB25/16-ST-508 Phoenix Contact COMBICON SMSTB 系列 16路 5.08mm节距 插头外壳 , 螺钉端接, 12A |
| Category |
商业参数
| 产品 | Plugs | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 250 V | 最大额定电流 | 12 A |
| 最小输入电压 | 320V | ||
机械参数
| 颜色 | Green | 深度 | 25.6 |
| 间距 | 0.200" (5.08mm) | 高度 | 15.5 |
| 重量 | 4.620889 oz | 包装方式 | Bulk |
| 导线线规 | 12-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 排数 | 1 | 插头进线方向 | 225° |
| 壳体材料 | Polyamide | 总长度 | 81.28 |
| 端接排数 | 螺钉 | 端接样式 | Screw |
| 触点数 | 16 | 位数 | 16 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 24-12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | SMSTB | 产品特性 | Retention Latches (Non-Wire Side) |
| 层数 | 1 | 每层位数 | 16 |
