点击放大查看

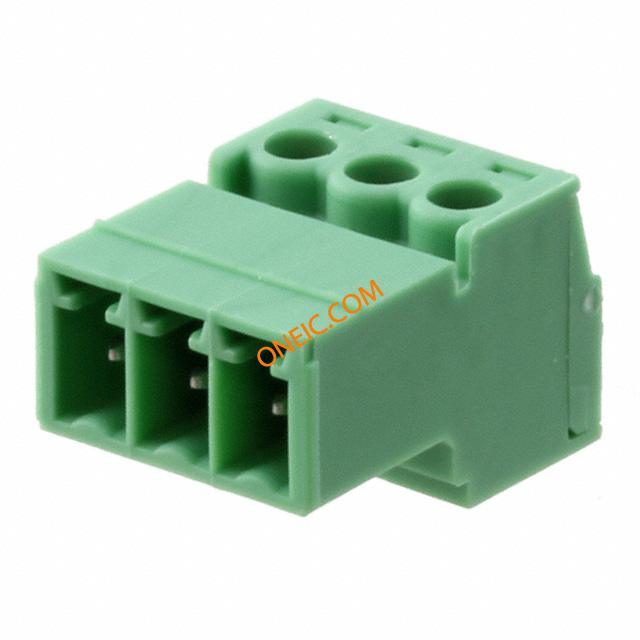

1857896
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMC 1 5/ 3-ST-3 81 Conn Terminal Block F 3 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 3POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 3-ST-3,81 Conn Terminal Blocks F 3 POS 3.81mm Screw RA Cable Mount 8A PLUGCOMPONENT,PITCH:3.81MM,POS3 |
| Category |
商业参数
| 产品 | Plugs - Inverted | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
| 最小输入电压 | 160V | 最小供电电压 | 160V |
机械参数
| 颜色 | Green | 深度 | 17.9 mm |
| 间距 | 0.150" (3.81mm) | 高度 | 11.1 mm |
| 重量 | 3.633218 oz | 包装方式 | Bulk |
| 导线线规 | 14-30 AWG | 端接方式 | Screw |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 180° | 壳体材料 | Polyamide |
| 总长度 | 12.42 mm | 端接样式 | Screw |
| 触点数 | 3 | 位数 | 3 |
| 接线端子类型 | Plug, Male Pins | 线规或范围 - AWG | 28-16 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | IMC | 层数 | 1 |
| 每层位数 | 3 | ||
