点击放大查看
1862580
| Manufacturer | |
| Description | Pluggable Terminal Blocks IMC 1.5/3-G-3.81 TERM BLOCK HDR 3POS R/A 3.81MM Header for PCB plug connector IMC 1,5/ 3-G-3,81 Conn Wire to Board F 3 POS 3.81mm Solder RA Thru-Hole IMC15/3-G-381 |
| Category |
商业参数
| 产品 | Headers - Inverted | 商标名 | COMBICON Control |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Not Applicable | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 8A | 电压 | 300V |
| 额定电压 | 160 V | 最大额定电流 | 8 A |
机械参数
| 颜色 | Green | 间距 | 0.150" (3.81mm) |
| 重量 | 4.268149 oz | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 接触镀层 | Tin | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 3 |
| 位数 | 3 | 接线端子类型 | Header, Female Sockets |
产品信息
| 类型 | Wire to Board | 系列 | IMC |
| 层数 | 1 | 每层位数 | 3 |
Documents & Media
相关型号
1861659
Phoenix Contact
Pluggable Terminal Blocks MCO 1 5/ 3-GR-3 81 Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM Header for PCB plug connector MCO 1,5/ 3-GR-3,81 MCO15/3-GR-381 Phoenix Contact COMBICON MCO 系列 3路 3.81mm节距 PCB 接线端子块 , 焊接端接
1830415
Phoenix Contact
Pluggable Terminal Blocks MCDV 1.5/ 3-G-3.81 Conn Wire to Board HDR 6 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 3.81MM Header for PCB plug connector MCDV 1,5/ 3-G-3,81 MCDV15/3-G-381
1908774
Phoenix Contact
Fixed Terminal Blocks 3.81mm 3P R/A BLK Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM

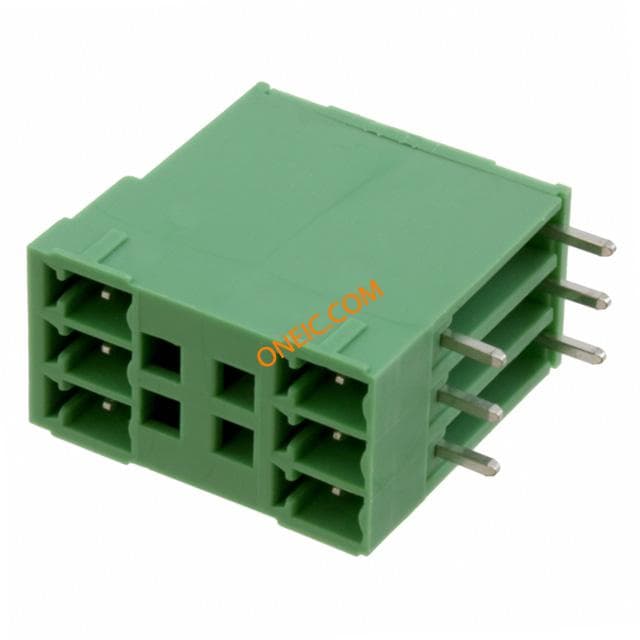

1843088
Phoenix Contact
プラグ着脱可能ターミナルブロック 3.81mm 3P HDR DBL LV Conn Wire to Board HDR 6 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 3.81MM Header for PCB plug connector MCD 1,5/ 3-G1-3,81 Pluggable Terminal Blocks 3.81mm 3P HDR DBL LV MCD15/3-G1-381 Terminal block; socket; male; angled; screws; 3.81mm; THT; ways:3

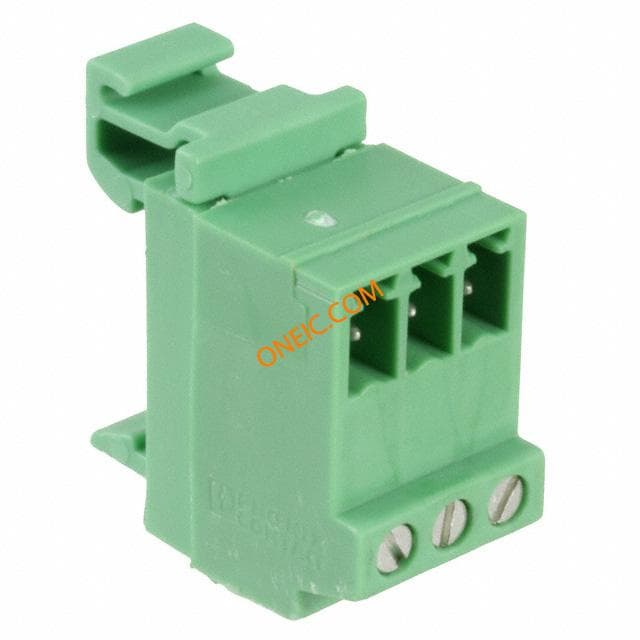

1832743
Phoenix Contact
Pluggable Terminal Blocks MCVK 1 5/ 3-G-3 81 Conn Terminal Block 3 POS 3.81mm Screw Cable Mount 8A PLUG TERM BLOCK 3POS 3.81MM BaseStrip;DIN;PlugComponent;8A;160V;3Pos;ScrewConn;Green
1897814
Phoenix Contact
Pluggable Terminal Blocks EMC 1.5/ 3-G-3.81 Conn Wire to Board HDR 3 POS 3.81mm Press Fit RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM EMC15/3-G-381
1860650
Phoenix Contact
Pluggable Terminal Blocks EMCV 1.5/ 3-G-3.81 Conn Wire to Board HDR 3 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 3POS VERT 3.81MM Header for PCB plug connector EMCV 1,5/ 3-G-3,81 EMCV15/3-G-381 Phoenix Contact COMBICON EMCV 系列 3路 3.81mm节距 PCB 接线端子块 , 按式端接, 8A

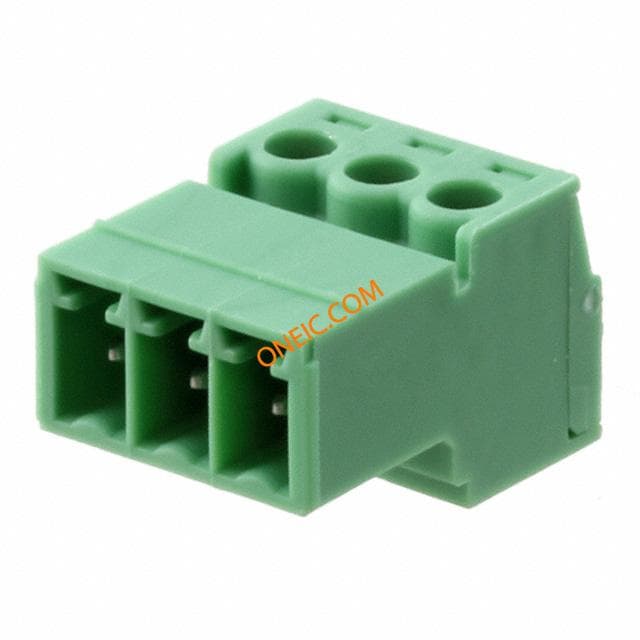

1857896
Phoenix Contact
Pluggable Terminal Blocks IMC 1 5/ 3-ST-3 81 Conn Terminal Block F 3 POS 3.81mm Screw RA Cable Mount 8A TERM BLOCK PLUG 3POS STR 3.81MM COMBICON PCB plugs IMC 1,5/ 3-ST-3,81 Conn Terminal Blocks F 3 POS 3.81mm Screw RA Cable Mount 8A PLUGCOMPONENT,PITCH:3.81MM,POS3

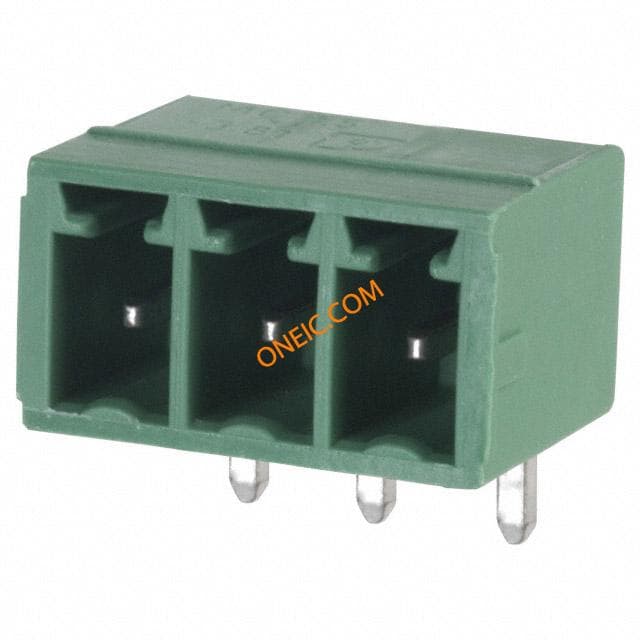

1803280
Phoenix Contact
Pluggable Terminal Blocks 3.81 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 3.81mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 3.81MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;3.81mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 3.81mm; THT; 8A Phoenix Contact COMBICON MC 系列 3.81mm节距 3路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 8A

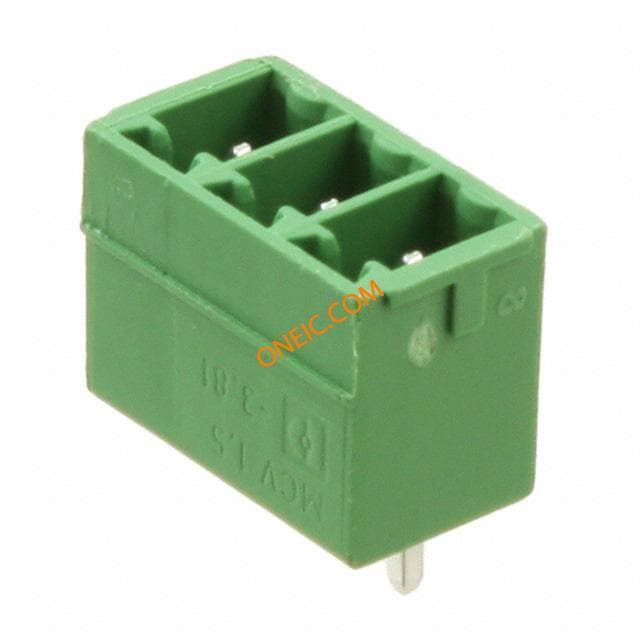

1803439
Phoenix Contact
Pluggable Terminal Blocks 3.81 3P HEADER 180D Conn Shrouded Header HDR 3 POS 3.81mm Solder ST Thru-Hole TERM BLOCK HDR 3POS VERT 3.81MM CONNECTOR, HEADER, THT, 3.81MM, 3WAY Conn;TermBlk;PCB;Header;SnglLvl;Sldr;3Pole;3.81mmPitch;COMBICON Phoenix Contact COMBICON MCV 系列 3.81mm节距 3路 (1排) 直 印刷电路板接线端子块, 焊接端接, 8A

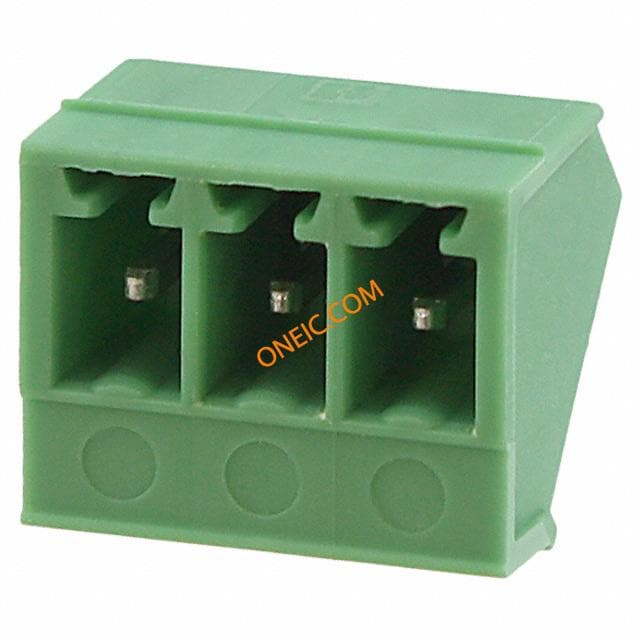

1827282
