点击放大查看

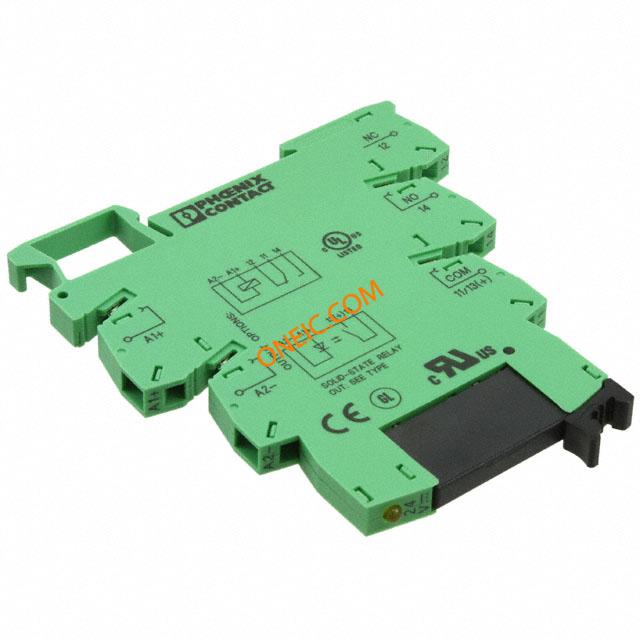

2967471
| Manufacturer | |
| Description | Solid State Relays - Industrial Mount PLCOSP24DC/24DC/2 Electromechanical Relay 3A 24VDC 2.67KOhm DIN Rail DIN RAIL TERM BLK W/OPTOCOU 24V Optocoupler PLC-OSP- 24DC/ 24DC/ 2 SSR, PLC, 24VDC, 3-33VDC, 3A Optocoupler;Industrial;DINRail;Transistor;w/Socket;PLCInterface;Spring DIN Rail 接口继电器模块, 3A, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Solid State Relays - Industrial Mount |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Output | DC Output | Circuit | SPST-NO (1 Form A) |
| Input Type | LED | Output Type | DC |
| Coil Current | 9 | Load Current | 3A |
| Switching Mode | :- | Visible Output | Yes |
| Voltage - Load | 3 ~ 33 V | Voltage Rating | 3-33VDC |
| Coil Resistance | 2.67K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VDC | Diode Configuration | Yes |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 0.2VDC |
| Voltage - Supply (Max) | :24V | Voltage - Supply (Min) | 3 VDC to 33 VDC |
| Voltage - Rated AC (Phase to Phase) | :33VDC | Drive Voltage (Max Rds On, Min Rds On) | 24VDC |
Mechanical
| Seal | Unsealed | Depth | 80 |
| Height | 94 | Weight | 1.011304 oz |
| Packaging | Bulk | Termination | Screw |
| Contact Form | 1 Form A (SPST-NO) | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Package / Case | Module |
| Length - Overall | 6.2 | Termination Style | Plug In |
| Contact Layout, Typical | :SPST-NO | ||
Product Info
| Type | PLC Relay | Series | PLC-OSP |
| Features | Socket | Function | PLC |
| Relay Type | PLC Relay | Manufacturer | PLC-OSC/OSP |
| Product Type | Industrial Mount | Industry Aliases | PLC-OSP- 24DC/24DC/2 |
| Base Product Number | PLC-OSP-24DC/24DC/2 | ||
Environmental
| Operate Time | 0.02 | Operating Temperature | 60 |
Documents & Media
