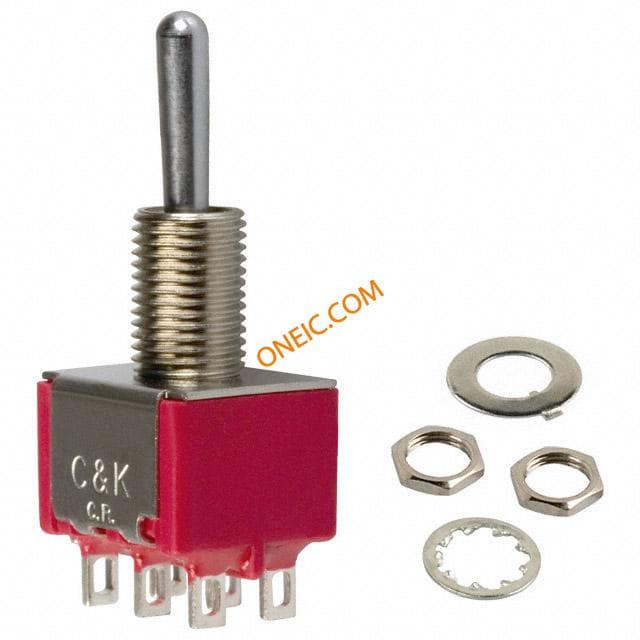

7201SYZQE
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 1 |
| Product Category | Toggle Switches | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365007 | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Circuit | DPDT | Operation | OnNoneOn |
| Voltage - Core | :250V | Voltage Rating | 28 V |
| Number of Poles | :2 | Switch Function | ON-ON |
| Voltage - Supply | 250 ACV | Switching Voltage | ON-ON |
| Contact Resistance | :10mohm | Voltage - Rated AC | 250V VAC |
| Dielectric Strength | 1000V | Current Rating (Max) | 5@120VAC 28VDC A |
| Current - Max/Contact | :5A | Insulation Resistance | 10^9Ohms(Min.) |
| Voltage - Input (Min) | 250 V | Switch Function/Rating | ON None ON |
| Contact Rating @ Voltage | :2A | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :28V | Switch Time (Ton, Toff) (Max) | 2000mA |
| Voltage - DC Spark Over (Nom) | 28V VDC | AC contacts rating (at resistance load) | 2 A / 250 VAC |
| DC contacts rating (at resistance load) | 5 A / 28 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | 11.43 mm | Pitch | 4.7mm |
| Width | :11.43mm | Height | 32.39 mm |
| Length | :12.7mm | Weight | 0.0718 |
| Plating | Ag | Packaging | Bulk |
| Tab Width | :0.76mm | Lead Style | for soldering |
| Body Finish | Miniature | Size - Body | 12.7 x 11.43 x 8.89mm |
| Termination | Solderlug | Thread Size | :1/4" x 40 NS |
| Weight (g): | 6.40000 | Contact Form | DPDT |
| Contact Type | DPDT | Actuator Type | Standard Round |
| Mounting Type | Panel Mount with Threads | Terminal Type | Solder Lug |
| Thread Length | :8.88mm | Bushing Thread | 1/4-40 |
| Connector Type | NoY/N | Contact Finish | Silver |
| Mounting Style | Panel | Actuator Length | 10.67mm |
| Material - Body | GlassFilledNylon | Material Finish | :- |
| Contact Material | Coin Silver | Housing Material | N/A/Stainless Steel |
| Length - Overall | H28,7mm | Package Quantity | 5 |
| Size / Dimension | 12,7x11,4mm | Actuator Diameter | 10.7mm |
| Actuator Material | Brass, Chrome Plated | Termination Style | Solder Lug |
| Panel Cutout Shape | :6.35mm | Actuator Style/Size | Toggle |
| Number of Positions | 3 | Bushing, Grommet Type | 1/4-40 |
| Mounting Hole Diameter | Ø6.35mm | Switch Actuation Level | DPDT |
| Contact Layout, Typical | :DPDT | Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Contact Material - Plating | silver plated | 1st Connector Mounting Type | :Through Hole |
Product Info
| Spg | 5 | Type | Miniature |
| Series | 7000 | Features | Epoxy Sealed Terminals |
| Matchcode | 7201SYZQE ** | Switch Type | toggle |
| Illumination | Non-Illuminated | Electrical Life | 100000cycles |
| Number of Units | 1 | Standard Leadtime | 16 weeks |
| Application Specifics | Usedintelecommunications,instrumentationandmedicalequipment | Contacts Configuration | DPDT |
Environmental
| Seal Rating | Sealed | Switching Cycles | :40000 |
| Ingress Protection | Terminals | Operating Temperature | -30 to 85 °C |
| Operating Temperature - Junction | 85C | ||
