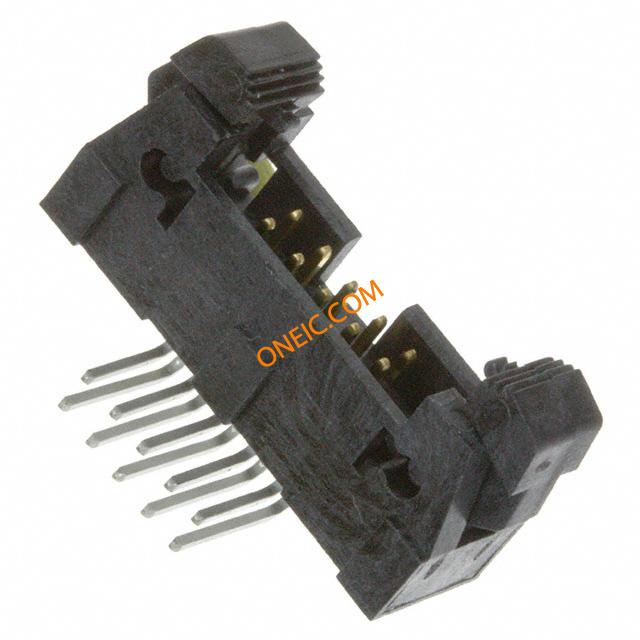

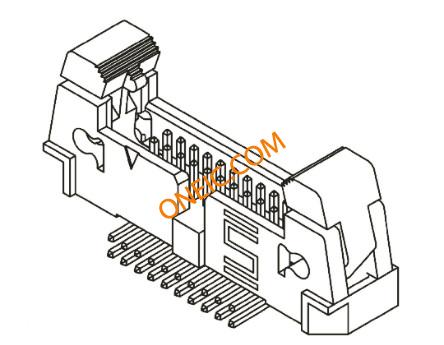

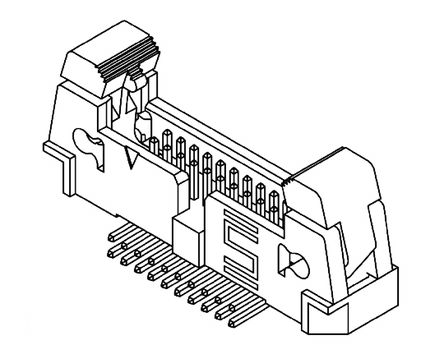

EHT-105-01-S-D-RA
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :SAMTEC - EHT Series | Current Rating (Max) | 3A |
Mechanical
| Color | Black | Depth | 15.71 |
| Pitch | 2 mm | Height | 7.62 |
| Weight | 0.001 | Material | :LCP |
| Packaging | Tube | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2mm | Pitch - Post | :2mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock/Eject Hooks | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 23.79 | Color - Connectors | :Black |
| Number of Contacts | 10 | Contact Termination | :Solder |
| Number of Positions | 10 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | EHT | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Similar Parts
Sourcing & traceability
- Datasheet
- eht.pdf
