TCSD-05-01-N
| Manufacturer | |
| Description | Conn IDC Connector SKT 10 POS 2mm IDT RA Cable Mount Tube CONN SOCKET 10 POS 2MM GOLD SOCKET, IDC, 2MM, 10WAY |
| Category |
商业参数
| 其他名称 | Q3751638 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :SAMTEC - TCSD Series | 接触电阻 | 10 mohm |
| 最大额定电流 | 1/Contact A | ||
机械参数
| 颜色 | Black | 深度 | 4 mm |
| 间距 | 2 mm | 高度 | 5.08 mm |
| 重量 | 0.002 | 包装方式 | Tube |
| 导线类型 | Ribbon Cable | 导线线规 | 28 AWG |
| 排间距 | 0.079" (2.00mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 引脚间距 | :2mm |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 排数 | 2 |
| 触头材料 | Beryllium Copper | 壳体材料 | Polyester |
| 总长度 | 14 mm | 电缆端接方式 | IDC |
| 触点数 | 10 | 接触件端接 | :IDC / IDT |
| 位数 | 10 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 产品特性 | Feed Through, Polarizing Key | ||
环境参数
| 工作温度 | -40C to 105C | ||
Documents & Media
相关型号
TMMH-105-01-F-DV
samtec inc.
Conn Unshrouded Header HDR 10 POS 2mm Solder ST SMD Tube CONN HEADER 10POS 2MM SMD HEADER, 2MM, SMT, 15WAY
TMM-105-03-G-D
samtec inc.
Conn Unshrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Conn Unshrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Bulk CONN HEADER 10POS DBL 2MM T/H

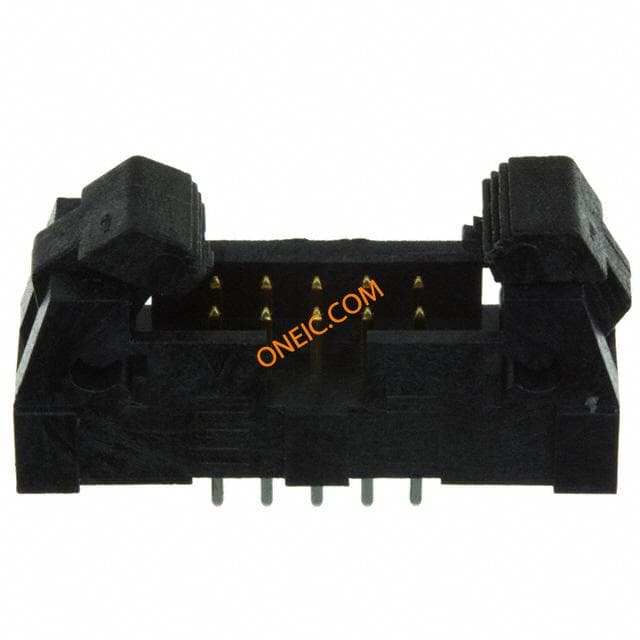

EHT-105-01-S-D
