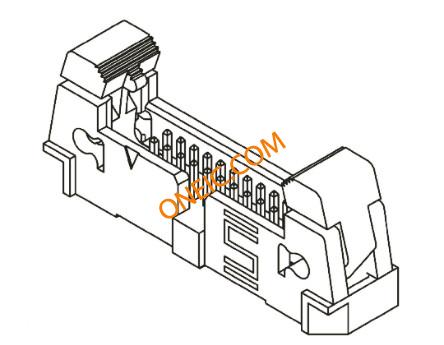

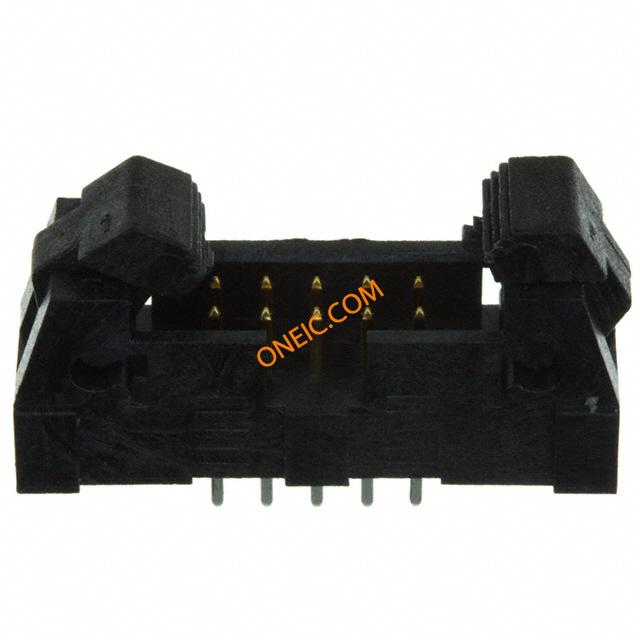

EHT-105-01-S-D
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :SAMTEC - EHT Series | Current Rating (Max) | 3A |

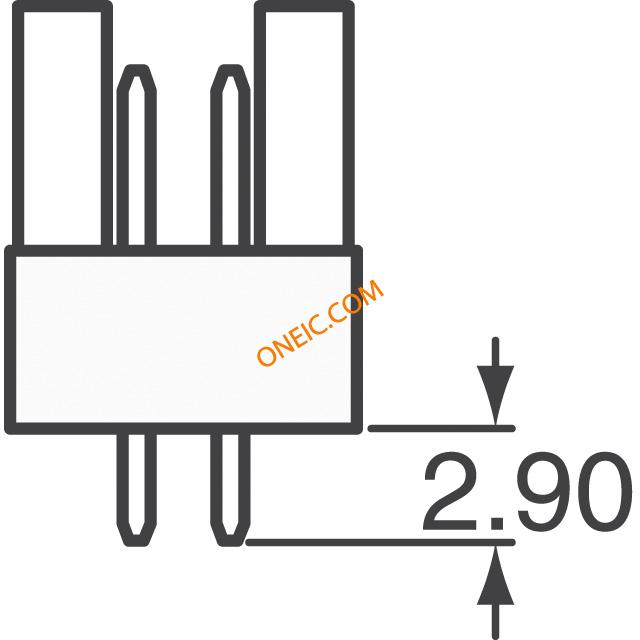

Mechanical

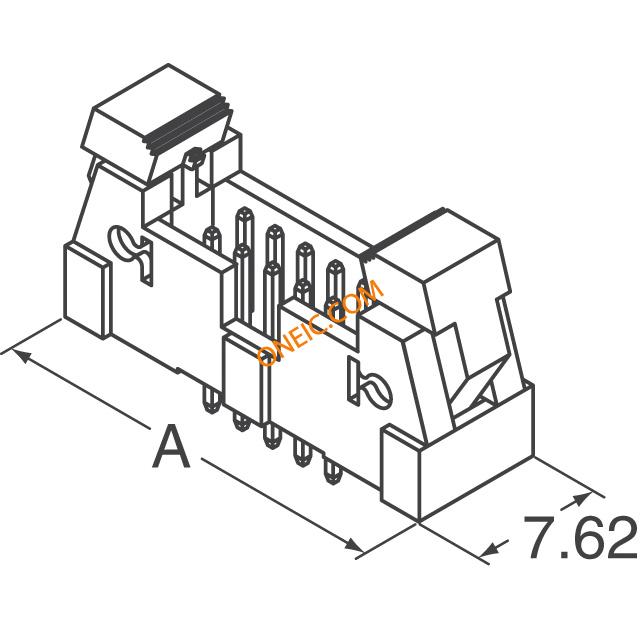

| Color | Black | Depth | 7.62 mm |
| Pitch | 2 mm | Height | 12.19 mm |
| Weight | 0.001 | Material | :LCP |
| Packaging | Tube | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2mm | Pitch - Post | :2mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock/Eject Hooks | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 23.79 mm |
| Color - Connectors | :Black | Number of Contacts | 10 |
| Contact Termination | :Solder | Number of Positions | 10 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | EHT | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55C to 125C | ||
Similar Parts
Sourcing & traceability
- Datasheet
- eht.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
