点击放大查看

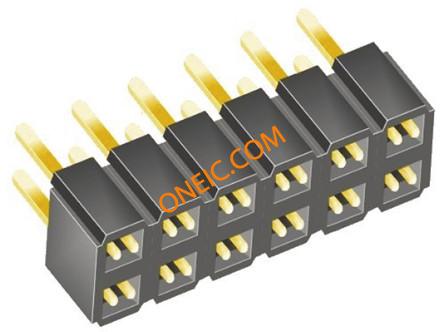

SLW-106-01-G-D

Manufacturer	Samtec, Inc.
Description	Conn Socket Strip SKT 12 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 12POS DUAL GOLD Receptacle 2.54mm low profile 6+6 way RECEPTACLE, 2.54MM, DUAL, 12WAY Samtec SLW 系列 2行 12路直 2.54mm节距通孔印刷电路板插座, 板对板
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1088-06

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85369010

电气参数

额定电压	550 V ac	接触电阻	:10mohm
最大额定电流	7.1A	最小输入电压	550VAC

机械参数

颜色	Black	深度	4.95
间距	2.54 mm	高度	4.57
重量	0.001	包装方式	Bulk
排间距	0.100" (2.54mm)	端接方式	Solder
引脚间距	:2.54mm	柱间距	:2.54mm
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
排数	2	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	15.24
连接器颜色	:Black	板面高度	0.180" (4.57mm)
触点数	12	接触件端接	:Through Hole Vertical
位数	12	接触镀层厚度	20µin (0.51µm)
堆叠高度（配合）	0.240" (6.09mm)

产品信息

类型	Socket Strip	连接器性别	SKT
系列	SLW	加载位置数	All

环境参数

工作温度

:125°C

Documents & Media

PDF Document

CES.pdf

PDF Document

SLW, CES Series Spec Sheet

PDF Document

81851.pdf
