点击放大查看

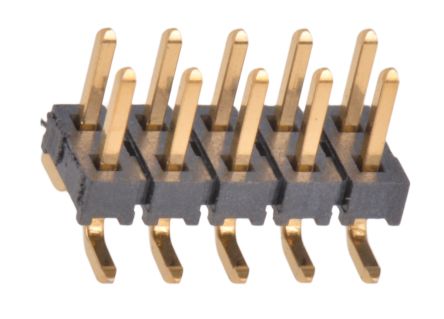

TMM-105-01-G-D-SM

Manufacturer	Samtec, Inc.
Description	Conn Unshrouded Header HDR 10 POS 2mm Solder ST SMD Tube CONN HEADER 10POS DUAL 2MM SMD Samtec TMM Series 2mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 3.9A HEADER, 2MM, DUAL SMD, 10WAY Samtec TMM 系列 10路 2mm节距 (2排) 直引脚管座 , 焊接端接, 3.9A, 表面安装
Category	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称

SAM1167-05

标准包装数量

Rail / Tube

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85366930

电气参数

额定电压	500 V ac	最大额定电流	3.9A
最小输入电压	500VAC

机械参数

颜色	Black	深度	3.94
间距	2 mm	高度	5.97
重量	0.001	包装方式	Tube
排间距	0.079" (2.00mm)	端接方式	Solder
触头类型	Male Pin	引脚间距	:2mm
柱间距	:2mm	外壳颜色	Black
安装类型	Surface Mount	连接器类型	Header, Unshrouded
接触镀层	Gold Over Nickel	排数	2
触头材料	Phosphor Bronze	壳体材料	Liquid Crystal Polymer
总长度	10	连接器颜色	:Black
触点数	10	接触件端接	:Surface Mount Vertical
位数	10	接触长度 - 配合	0.126" (3.20mm)
接触镀层厚度	20µin (0.51µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
系列	TMM	加载位置数	All

环境参数

工作温度

:125°C

Documents & Media

PDF Document

TMM_SM.PDF

PDF Document

TMM Series SMT Spec Sheet

PDF Document

82145.pdf
