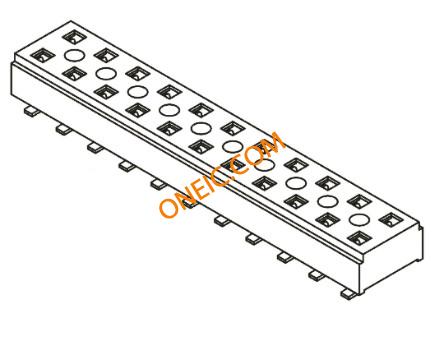

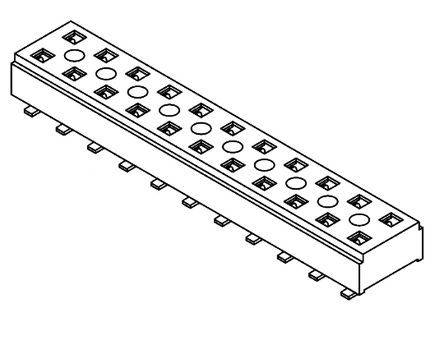

CLT-105-02-L-D
| Manufacturer | |
| Description | Conn Socket Strip SKT 10 POS 2mm Solder ST SMD Tube CONN RCPT 10POS DUAL 2MM SMD Samtec CLT Series 2mm 10 Way 2 Row Straight PCB Socket Surface Mount Board to Board RECEPTACLE, 2MM, SMD, 10WAY Samtec CLT 系列 2行 10路 直 2mm节距 表面贴装 印刷电路板插座, 板对板 |
| Category |
商业参数
| 其他名称 | SAM1166-05 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 3.3A |
机械参数
| 颜色 | Black | 深度 | 4 mm |
| 间距 | 2 mm | 高度 | 2.26 mm |
| 重量 | 0.001 | 材料（通用） | :LCP |
| 包装方式 | Tube | 排间距 | 0.079" (2.00mm) |
| 端接方式 | Solder | 触头类型 | Female Socket |
| 引脚间距 | :2mm | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Surface Mount |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 10 mm |
| 连接器颜色 | :Black | 触点数 | 10 |
| 接触件端接 | :Solder | 位数 | 10 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Socket Strip | 连接器性别 | SKT |
| 系列 | CLT | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 125C | ||
