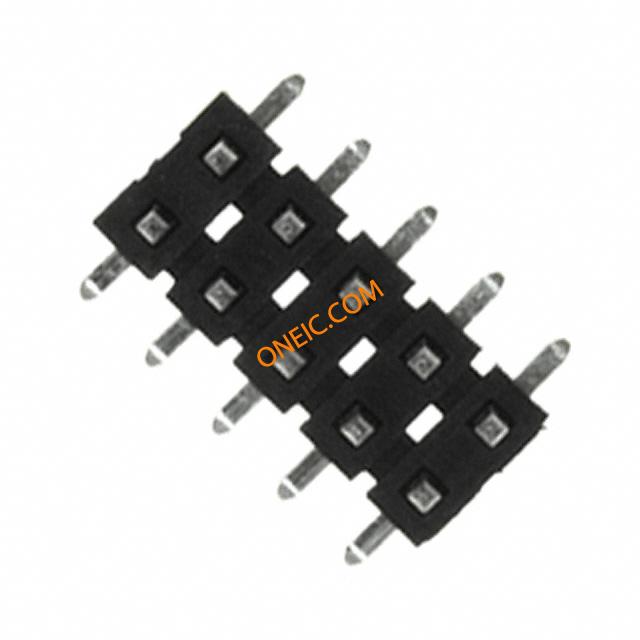

TMM-105-01-T-D-SM
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | SAM1171-05 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 3.9/Contact | Voltage - Input (Min) | 500VAC |
Mechanical
| Color | Black | Depth | 3.94 |
| Pitch | 2 mm | Height | 5.97 |
| Weight | 0.0003 | Packaging | Tube |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Matte Tin Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 10 | Number of Contacts | 10 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 10 |
| Contact Length - Mating | 0.126" (3.20mm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | :- | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
