点击放大查看

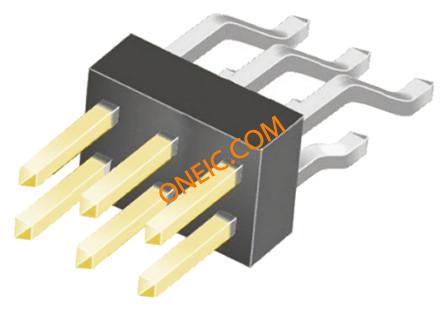

TSM-103-01-L-DH
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | Q5802509 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Current Rating (Max) | 7A | Voltage - Input (Min) | 475VAC |
Mechanical
| Color | Black | Depth | 15.09 |
| Pitch | 2.54 mm | Height | 6.1 |
| Weight | 0.0003 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 7.62 | Number of Contacts | 6 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 6 |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | TSM | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
