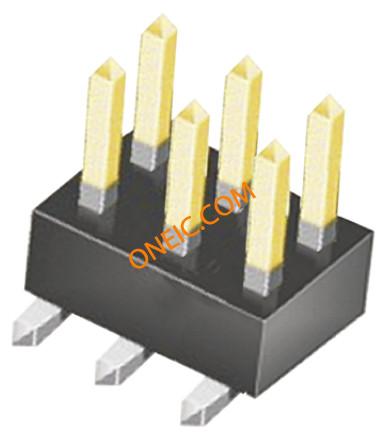

TSM-103-01-L-DV
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST SMD Tube CONN HEADER 6POS .100" DBL SMD Samtec TSM Series 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 7A HEADER, 2.54MM, SMT, 2X3WAY Samtec TSM 系列 6路 2.54mm节距 (2排) 直 引脚管座 , 焊接端接, 7A, 表面安装 |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 475 V ac | 最大额定电流 | 7A |
| 最小输入电压 | 475VAC | ||
机械参数
| 颜色 | Black | 深度 | 5.08 |
| 间距 | 2.54 mm | 高度 | 9.65 |
| 重量 | 0.0003 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Surface Mount | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer |
| 总长度 | 7.62 | 触点数 | 6 |
| 接触件端接 | :Surface Mount Vertical | 位数 | 6 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 10µin (0.25µm) |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | TSM | 加载位置数 | All |
