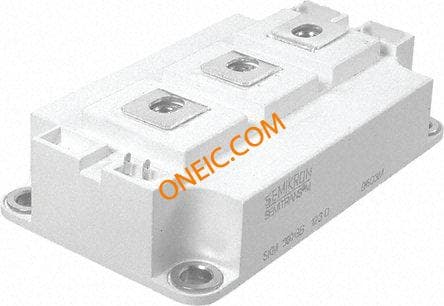

SKM400GB176D
| Manufacturer | |
| Description | SKM400GB176D, IGBT Module, N-channel, Dual, 430A 1700V, 7-Pin D 56 IGBT MODULE, DUAL, 1700V, 430A IGBT MODULE, DUAL, 1700V SEMITRANS,IGBTHalf-BridgeTrench,1700V Semikron N通道 IGBT 模块, 双半桥, 430 A 1700 V, 7针 SEMITRANS3封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85412900 | ||
Electrical
| Voltage | :1700V | Vgs (Max) | ±20V |
| Power - Max | 170mJ | Rise Time (Typ) | :55ns |
| Transistor Type | :Dual NPN | Voltage - Supply | :2V |
| Number of Elements | :2 | Resistance @ 25degC | 0.075K/W |
| Voltage - Input (Min) | 1700 V | Vce(on) (Max) @ Vge, Ic | 1700 V |
| Vce Saturation (Max) @ Ib, Ic | 2V | Current - Collector (Ic) (Max) | :430A |
| Current - Average Rectified (Io) | :430A | Current - Collector Cutoff (Max) | 430 A |
| Current - Collector Pulsed (Icm) | :440A | Current - Continuous Drain (Id) @ 25degC | :310A |
Mechanical
| Depth | :61.4mm | Width | 61.4mm |
| Height | 30mm | Length | 106.4mm |
| Weight | 0.43 | Termination | :Screw |
| Mounting Type | Screw | Number of Pins | :7 |
| Package / Case | :SEMITRANS 3 | Package Cooled | D 56 |
| Primary Material | Si | Size / Dimension | 106.4 x 61.4 x 30mm |
| Number of Positions | 7 | Mounting Hole Diameter | :5.4mm |
| Mounting Panel Thickness | :93mm | ||
Product Info
| Mfr | 斯洛伐克 | Type | Trench |
| Polarity | N-Channel | SMD Marking | :SEMITRANS 3 |
| Channel Type | N | Configuration | Dual |
| Capacity (Pounds) | 0.31 千克 | Other Specifications | 19.8nF |
Environmental
| Temperature - Test | :25°C | Operating Temperature | +150 °C |
