SKM50GB12T4
| Manufacturer | |
| Description | SKM50GB12T4, IGBT Halfbridge Module, N-channel, Dual, 81A 1200V, 7-Pin GB Trans IGBT Module N-CH 1.2KV 81A 7-Pin Case GB IGBT, HALFBRIDGE, MODULE, 50A, 1200V IGBTMOD.50A1200V IGBT module SEMITRANS 2 1200 V, SKM50GB12T4, Semikron Semikron N通道 IGBT 模块, 双半桥, 81 A 1200 V, 7针 SEMITRANS2封装 |
| Category |
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85412900 | Rad Hardened | No |
Electrical
| Vgs (Max) | ±20V | Transistor Type | :Dual NPN |
| Voltage - Supply | 1200 V | Voltage - Input (Min) | 1200 V |
| Vce(on) (Max) @ Vge, Ic | 1200 V | Current - Collector (Ic) (Max) | :81A |
| Current - Collector Cutoff (Max) | 81 A | ||
Mechanical
| Width | 34mm | Height | 30.1mm |
| Length | 94mm | Weight | 0.18 |
| Termination | :Screw | Mounting Type | Screw |
| Number of Pins | :7 | Package / Case | :SEMITRANS 2 |
| Package Cooled | GB | Size / Dimension | 94 x 34 x 30.1mm |
| Number of Positions | 7 | ||
Product Info
| Mfr | 斯洛伐克 | Channel Type | N |
| Configuration | Dual | Capacity (Pounds) | 0.15 千克 |
| Module/Board Type | :Dual | ||
Environmental
| Operating Temperature | +175 °C | Operating Temperature - Junction | 175C |
Similar Parts

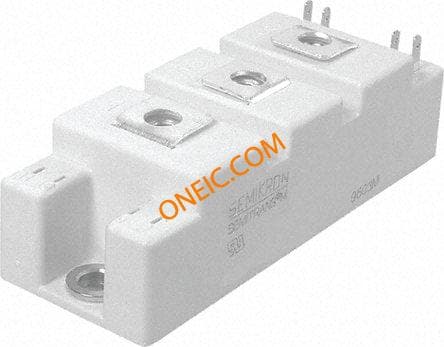

SKM75GB12T4
