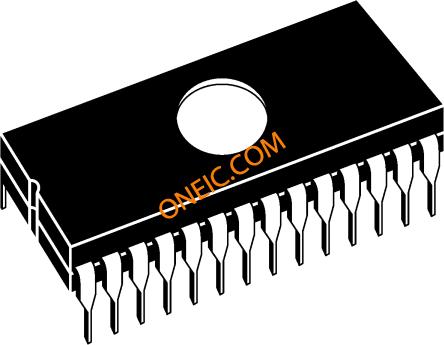

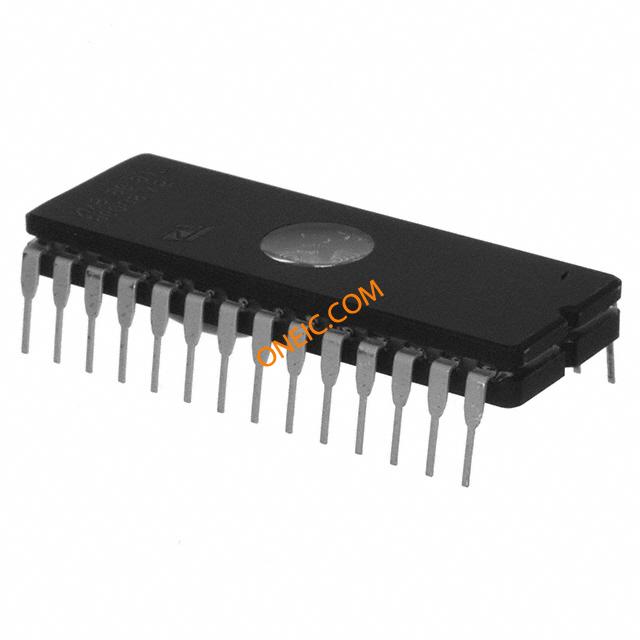

M27C256B-15F1
| Manufacturer | |
| Description | EPROM 256K (32KX8) 150ns EPROM UV 256K-Bit 32K x 8 150ns 28-Pin CFDIPW Tube IC EPROM UV 256KBIT 150NS 28CDIP M27C256B-15F1, UV Erasable EPROM Memory 256kbit 32K x 8 bit 150ns, 5.0V 28-Pin CFDIPW, CFDIPWB IC, EPROM CMOS 256K, 27C256, DIP28 EPROM;256KBUVEPROM;5V;150;FDIP28W;2V(MIN.);0.8V(TYP.);100STANDBY |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 497-1650-5 | Standard Package | 13 |
| Standard Package Name | CDIP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Part Status | :27C256 | ||
Electrical
| Speed | 150ns | Memory | :32K x 8bit |
| Interface | Parallel | Tolerance | :10% |
| Access Time | 150ns | Memory Size | 256K (32K x 8) |
| Memory Type | EPROM UV | Current - Bias | 30mA(Read) |
| Voltage - VCCB | :5V | Voltage Rating | 4.5 V |
| Current - Output | 30mA | Voltage - Supply | 4.5 V ~ 5.5 V |
| Current - Leakage | ±10μA(Read) | Voltage - Output 4 | 0.4V(Read) |
| Capacitance - Input | 6pF | Capacitance @ Vr, F | 12pF |
| Current Rating (Max) | 50 | Voltage - Input (Min) | 6V(Read) |
| Rise / Fall Time (Typ) | ≤20ns | Voltage - Supply (Min) | 5.5 V |
| Input Logic Level - Low | 0.8V(Typ.) | Input Logic Level - High | 2V(Min.) |
| Switch Time (Ton, Toff) (Max) | ≤20ns | Voltage - Gate Trigger (Vgt) (Max) | 12.75V |
| Common Mode Transient Immunity (Min) | Commercial | ||
Mechanical
| Width | 13.36mm | Height | 4.5mm |
| Length | 37.34mm | Weight | 0.009 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Number of Pins | :28 |
| Package / Case | 28-CDIP (0.600", 15.24mm) Window | Package Cooled | CFDIPW, CFDIPWB |
| Material Finish | :- | Length - Overall | 37.34(Max) |
| Package Quantity | CFDIPW | Size / Dimension | 37.34 x 13.36 x 4.5mm |
| Number of Positions | 28 | Shell Size - Insert | 4.5(Max) |
| Supplier Device Package | 28-CDIP Frit Seal with Window | ||
Product Info
| Density | 256K | Base Unit | :27 |
| Manufacturer | 32Kx8 | Programmable | 100μA |
| Memory Format | EPROMs | In System Programming | In System|External |
| Printed Circuit Board | 28 | Suggested Programming Environment | UV |
Environmental
| Temperature Range | :Commercial | Operating Temperature | 0°C ~ 70°C |
| Operating Temperature - Junction | 70°C | ||
