LMK212BJ475KD-T
| Category |
对参数有疑问？问 AI 助手
Business
| Product | General Type MLCCs | Other Names | 587-1297-1 |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85322300 |
| Rad Hardened | No | ||
Electrical
| Voltage | 10 Vdc | Tolerance | 10 % |
| Capacitance | 4.7 uF | Range deg/s | :TAIYO YUDEN - M Series |
| Voltage Rating | 10V | Capacitance - Input | :0805 ^2012 Metric] |
| Capacitance @ Vr, F | :X5R | ||
Mechanical
| Depth | 1.25 mm | Width | 1.25 mm |
| Height | 0.85 mm | Weight | 0.002 |
| Diameter | Not Required mm | Packaging | Tape & Reel (TR) |
| Construction | Flat | Mounting Type | Surface Mount |
| Mounting Style | Surface Mount | Package / Case | 0805 |
| Material Finish | :- | Thickness (Max) | 0.037" (0.95mm) |

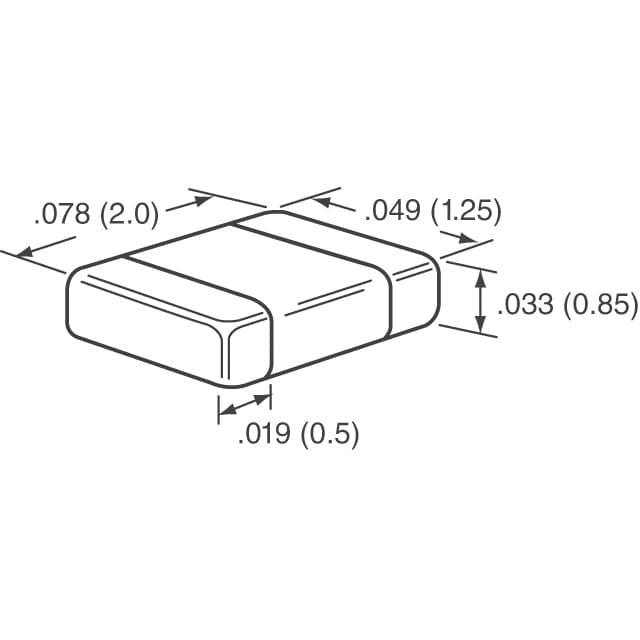

| Length - Overall | 2 mm | Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Termination Style | SMD/SMT | Dielectric Material | X5R |
| Mounting Hole Diameter | 2012 | Wire Gauge or Range - AWG | Not Required |
Product Info
| Type | Multilayer Ceramic Capacitor | Series | M |
| Applications | General Purpose | Failure Rate | Not Required |
Environmental
| Operating Temperature | -55 to 85 °C | Temperature Coefficient | X5R |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- X5R, X7R Dielectrics 23/Jan/2008
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
