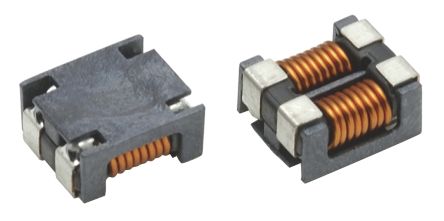

ACM70V-701-2PL-TL00
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | Lead Time | 98 Days |
| Other Names | 445-4081-1 | Subcategory | Common Mode Chokes |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Current | 4A | Impedance | 700 Ohm |
| Filter Type | Power Line | Range deg/s | :TDK - ACM Series |
| Test Frequency | 100 MHz | Voltage Rating | :80V |
| DC Resistance (DCR) | 15 mOhm Max | Current Rating (Max) | 4 A |
| Insulation Resistance | :10Mohm | DC Resistance (DCR) (Max) | :0.015ohm |
| Resistance - Initial (Ri) (Min) | 15 mOhms | ||
Mechanical
| Width | 6 mm | Weight | 0 |

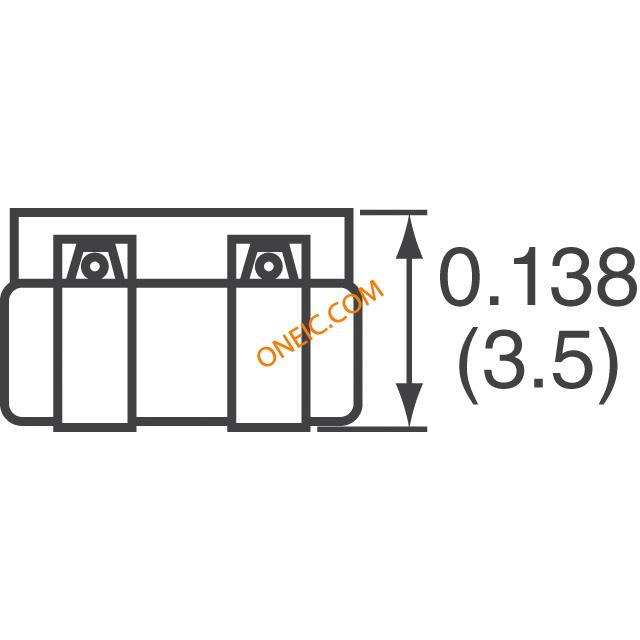

| Packaging | Tape and Reel | Height (Max) | 0.138" (3.50mm) |
| Mounting Type | Surface Mount | Connector Type | :Surface Mount |
| Number of Pins | :4 | Package / Case | Horizontal, 4 J-Lead |
| Size / Dimension | 0.276" L x 0.236" W (7.00mm x 6.00mm) | Termination Style | SMD/SMT |
| Shell Size - Insert | :7060 | Dimensions - Overall | :7mm x 6mm x 3.5mm |
Product Info
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- ACM Series Schematic
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
