1-770005-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| UL File Number | E28476 | CSA File Number | LR 7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| Approval Agency Marking | 是 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Plating | 锡 | Packaging | Tape & Reel (TR) |
| Cable Type | 分离式导线 | Wire Gauge | 14-20 AWG |
| Termination | Crimp | Pin or Socket | Split Pin |
| Connector Type | Connector Power | Contact Finish | Gold |
| Plating - Body | Nickel | Insert Material | 黄铜 |
| Contact Material | Brass | Package Quantity | 2500 |
| Termination Style | Quick Connect | 1st Contact Gender | Pin (Male) |
| Fits Terminal Size | No | Contact Termination | Crimp |
| Insulation Diameter | 3.3 – 5.08 mm [ .13 – .2 in ] | Compatible Shell Size | 标准通用 MATE-N-LOK（插座） |
| Contact Finish - Mating | 锡 | Pin Size - Above Flange | 2.18 mm [ .086 in ] |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | 20-14 |
| Jacket (Insulation) Thickness | 1.27 µm [ 50 µin ] | ||
Product Info
| Gender | PIN | Product Type | Contacts |
| Application Specifics | Power | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 120 °C [ -67 – 248 °F ] |
Documents & Media
Online Document
Similar Parts
770020-1
te connectivity / amp
$4.3350
Details
770052-1
te connectivity / amp
$1.0520
Details
770056-1
te connectivity / amp
$2.1420
Details
770016-1
te connectivity / amp
$4.5560
Details
770054-1
te connectivity / amp
$3.5530
Details
770024-1
te connectivity / amp
$2.4752
Details
770058-1
te connectivity / amp
$6.3301
Details
770023-1
te connectivity / amp
$7.5140
Details
770026-1
te connectivity / amp
$3.9780
Details
770044-1
te connectivity / amp
$4.2106
Details
770032-1
te connectivity / amp
$1.2498
Details
770050-1
te connectivity / amp
$2.2943
Details
770017-1
te connectivity / amp
$4.6172
Details

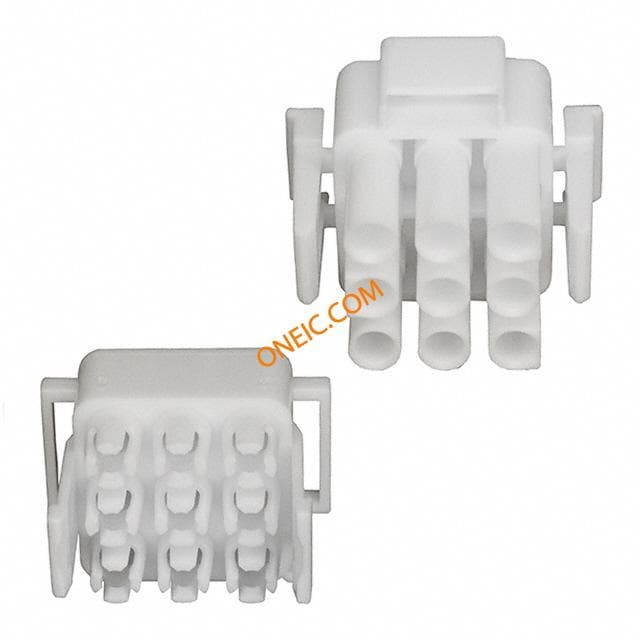

770021-1
