1-794611-1
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 17946111 | Part # Aliases | 374-0455 |
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Depth | 2.67 mm | Pitch | Not Required mm |
| Weight | 0.002 | Packaging | Bulk |
| Wire Gauge | 26-30 AWG | Termination | Crimp |
| Contact Type | Power | Mounting Type | Straight |
| Pin or Socket | Socket | Connector Type | Connector Power |
| Contact Finish | Gold | Mounting Style | Cable |
| Foil Crimp Area | Bright Tin | Contact Material | Phosphor Bronze |
| Housing Material | Not Required | Length - Overall | 12.17 mm |
| Package Quantity | Loose Piece | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 1 POS |
| Contact Termination | Crimp | Contact Finish Thickness | 15µin (0.38µm) |
| Wire Gauge or Range - AWG | 30-26 | Wire Gauge or Range - mm2 | 0.05-0.15 [30-26] |
Product Info
| Type | Contact | Gender | SKT |
| Series | Mate-N-Lok | Manufacturer | AMP |
| Product Type | Contact | Number of Ports | 1 Port |
| For Use With/Related Products | :Micro MATE-N-LOK Housings | ||
Environmental
| Operating Temperature | -40C to 105C | Operating Temperature - Junction | 105C |
Documents & Media
PDF Document
Online Document
Similar Parts
91502-1
te connectivity / amp
$5427.1072
Details
794617-8
te connectivity / amp
$2.5480
Details
1-794617-4
te connectivity / amp
$1.3887
Details
1445022-5
te connectivity / amp
$1.4280
Details
1-794617-8
te connectivity / amp
$3.8760
Details
1-1445022-0
te connectivity / amp
$2.0000
Details
1-1445022-1
te connectivity / amp
$9.0763
Details
1445022-3
te connectivity / amp
$1.0948
Details
1445022-8
te connectivity / amp
$1.9856
Details
2-794617-4
te connectivity / amp
$5.7120
Details
1445022-9
te connectivity / amp
$2.2848
Details
1-794617-6
te connectivity / amp
$2.9240
Details
794617-2
te connectivity / amp
$1.3260
Details
91391-2
te connectivity / amp
$4837.2004
Details
2-794617-2
te connectivity / amp
$13.3756
Details
91391-1
te connectivity / amp
$1303.0840
Details
2-794617-0
te connectivity / amp
$2.9628
Details
1-1445022-2
te connectivity / amp
$1.8700
Details
1445022-7
te connectivity / amp
$2.3800
Details

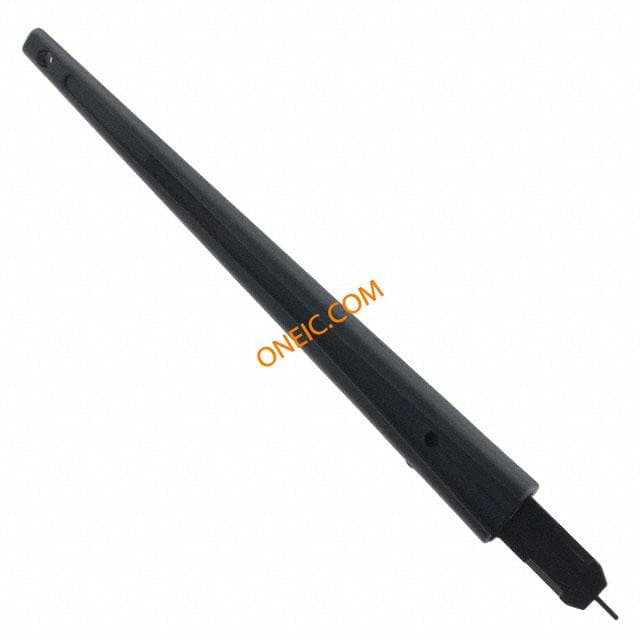

843996-6
